ENGINE WIRE HARNESS (AT)
View large diagramHide diagramView diagramView printable catalogTranslate

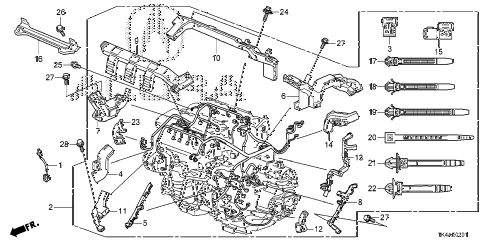

2013 TL ADV 4 DOOR 6AT ENGINE WIRE HARNESS (AT) diagram

  • 001

    sub-wire, knock sensor

    Part Number: 30531-R70-A00

    ''


    KA - US - 49 State Spec

    • $8.62

  • 002

    wire harness, engine

    Part Number: 32110-RK1-A71

    ''


    KA - US - 49 State Spec

    • $373.03

  • 003

    holder, corrugated (10mm) (black)

    Part Number: 32113-R60-003

    ''


    KA - US - 49 State Spec

    • $2.17

  • 004

    holder, corrugated tube (22mm)(black)

    Part Number: 32119-RK1-A01

    ''


    KA - US - 49 State Spec

    • $7.37

  • 005

    holder b, engine harness

    Part Number: 32128-RYE-A70

    ''


    KA - US - 49 State Spec

    • $10.82

  • 006

    holder c, engine wire harness

    Part Number: 32129-RK1-A70

    ''


    KA - US - 49 State Spec

    • $34.20

  • 007

    holder d, engine harness

    Part Number: 32130-RK1-A10

    ''


    KA - US - 49 State Spec

    • $18.97

  • 008

    holder e, engine harness

    Part Number: 32131-RYE-A70

    ''


    KA - US - 49 State Spec

    • $14.72

  • 009

    holder f, engine harness

    Part Number: 32132-RK1-A00

    ''


    KA - US - 49 State Spec

    • $29.00

  • 010

    holder g, engine harness

    Part Number: 32133-RK1-A10

    ''


    KA - US - 49 State Spec

    • $22.08

  • 011

    holder h, engine harness

    Part Number: 32134-R70-A00

    ''


    KA - US - 49 State Spec

    • $7.80

  • 012

    holder j, engine wire harness

    Part Number: 32135-RK1-A70

    ''


    KA - US - 49 State Spec

    • $7.37

  • 013

    holder l, engine harness

    Part Number: 32137-RYE-A00

    ''


    KA - US - 49 State Spec

    • $9.95

  • 014

    holder j, engine harness

    Part Number: 32138-RK1-A01

    ''


    KA - US - 49 State Spec

    • $5.63

  • 015

    holder k, engine harness

    Part Number: 32139-RK1-A01

    ''


    KA - US - 49 State Spec

    • $3.38

  • 016

    stay a, engine wire harness

    Part Number: 32741-RK1-A00

    ''


    KA - US - 49 State Spec

    • $5.63

  • 017

    clip a, harness band (129.4mm)(dark violet)

    Part Number: 91506-RTA-003

    ''


    KA - US - 49 State Spec

    • $3.42

  • 018

    clip b, harness band (129.4mm)(dark green)

    Part Number: 91507-RTA-003

    ''


    KA - US - 49 State Spec

    • $3.42

  • 019

    clip c, harness band (179.4mm)(black)

    Part Number: 91508-RTA-003

    ''


    KA - US - 49 State Spec

    • $0.88

  • 020

    band, wire harness (172mm) (black)

    Part Number: 91551-PNA-003

    ''


    KA - US - 49 State Spec

    • $2.35

  • 021

    clip, harness band (150mm) (violet)

    Part Number: 91558-P8C-A01

    ''


    KA - US - 49 State Spec

    • $2.68

  • 022

    clip, harness band (135mm) (7mm hole) (natural)

    Part Number: 91558-ST5-003

    ''


    KA - US - 49 State Spec

    • $4.27

  • 023

    cover, engine control module connector

    Part Number: 91705-RYE-A01

    ''


    KA - US - 49 State Spec

    • $1.88

  • 024

    bolt-washer (6x25)

    Part Number: 93404-06025-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 025

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    ''


    KA - US - 49 State Spec

    • $1.03

  • 026

    bolt, flange (6x14)

    Part Number: 95701-06014-08

    ''


    KA - US - 49 State Spec

    • $0.92

  • 027

    bolt, flange (6x16)

    Part Number: 95701-06016-08

    ''


    KA - US - 49 State Spec

    • $0.92

  • 028

    bolt, flange (6x20)

    Part Number: 95701-06020-08

    ''


    KA - US - 49 State Spec

    • $0.23
