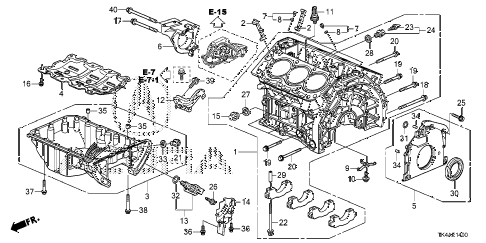

• 001

    block assy., cylinder

    • Part Number: 11000-R70-A01

    '


    KA - US - 49 State Spec

    • $1,152.66

  • 002

    plate, partition

    • Part Number: 11103-R70-A01

    '


    KA - US - 49 State Spec

    • $7.97

  • 003

    pan, oil

    • Part Number: 11200-RN0-A01

    '


    KA - US - 49 State Spec

    • $109.72

  • 004

    plate, baffle

    • Part Number: 11221-R70-A10

    '


    KA - US - 49 State Spec

    • $9.88

  • 005

    case assy., oil seal

    • Part Number: 11300-R70-A00

    '


    KA - US - 49 State Spec

    • $67.95

  • 006

    bracket, engine side mounting

    • Part Number: 11910-R70-A00

    '


    KA - US - 49 State Spec

    • $41.02

  • 007

    orifice assy., oil control

    • Part Number: 15140-P8A-A00

    '


    KA - US - 49 State Spec

    • $8.43

  • 008

    o-ring (8.8x2.4)

    • Part Number: 15142-P8A-A00

    '


    KA - US - 49 State Spec

    • $2.35

  • 009

    body, oil jet

    • Part Number: 15280-R70-A00

    '


    KA - US - 49 State Spec

    • $15.78

  • 010

    bolt, oil jet

    • Part Number: 15290-RJA-000

    '


    KA - US - 49 State Spec

    • $19.45

  • 011

    sensor, knock

    • Part Number: 30530-RNA-A01

    '


    KA - US - 49 State Spec

    • $26.08

  • 012

    stay, knock sensor connector

    • Part Number: 32115-RK1-A00

    '


    KA - US - 49 State Spec

    • $3.27

  • 013

    sensor assy., crank

    • Part Number: 37500-R40-A01

    '


    KA - US - 49 State Spec

    • $89.18

  • 014

    cover, crank sensor

    • Part Number: 37503-RGW-A00

    '


    KA - US - 49 State Spec

    • $19.43

  • 015

    bolt, drain plug (28mm)

    • Part Number: 90001-PM3-003

    '


    KA - US - 49 State Spec

    • $12.53

  • 016

    bolt-washer (6x15)

    • Part Number: 90001-RKG-000

    '


    KA - US - 49 State Spec

    • $2.62

  • 017

    bolt, flange (10x85)

    • Part Number: 90002-R70-A00

    '


    KA - US - 49 State Spec

    • $1.95

  • 018

    bolt-washer (10x109)

    • Part Number: 90006-P8A-A01

    '


    KA - US - 49 State Spec

    • $6.57

  • 019

    bolt-washer (10x60)

    • Part Number: 90008-P8A-A01

    '


    KA - US - 49 State Spec

    • $5.27

  • 020

    bolt-washer (10x80)

    • Part Number: 90009-P8A-A01

    '


    KA - US - 49 State Spec

    • $5.83

  • 021

    bolt, plug (14mm)

    • Part Number: 90009-R70-A00

    '


    KA - US - 49 State Spec

    • $7.35

  • 022

    bolt-washer (11x105)

    • Part Number: 90014-RCA-A01

    '


    KA - US - 49 State Spec

    • $2.90

  • 023

    bolt, breathing

    • Part Number: 90030-PH7-000

    '


    KA - US - 49 State Spec

    • $11.92

  • 024

    bolt, drain plug

    • Part Number: 90040-P8A-A01

    '


    KA - US - 49 State Spec

    • $15.02

  • 025

    bolt, flange (6x22)

    • Part Number: 90052-PH7-000

    '


    KA - US - 49 State Spec

    • $3.03

  • 026

    bolt, flange (6x20.5) (guide)

    • Part Number: 90139-R70-A00

    '


    KA - US - 49 State Spec

    • $0.25

  • 027

    washer, sealing (28mm)

    • Part Number: 90401-PR4-000

    '


    KA - US - 49 State Spec

    • $3.15

  • 028

    washer, drain (18mm)

    • Part Number: 90401-P8A-A00

    '


    KA - US - 49 State Spec

    • $3.30

  • 029

    pin, dowel (13x37)

    • Part Number: 90715-PH7-000

    '


    KA - US - 49 State Spec

    • $3.47

  • 030

    oil seal (80x98x8) (arai)

    • Part Number: 91214-R70-A01

    '


    KA - US - 49 State Spec

    • $16.95

  • 030

    oil seal (80x98x8) (nok)

    • Part Number: 91214-RCA-A01

    '


    KA - US - 49 State Spec

    • $12.28

  • 031

    o-ring (26.2x2.4) (yamada somboon)

    • Part Number: 91308-P3R-T01

    '


    KA - US - 49 State Spec

    • $1.20

  • 032

    o-ring (15x1.9)

    • Part Number: 91333-PNA-003

    '


    KA - US - 49 State Spec

    • $1.83

  • 033

    washer, drain plug (14mm)

    • Part Number: 94109-14000

    '


    KA - US - 49 State Spec

    • $0.38

  • 034

    pin, dowel (6x10)

    • Part Number: 94301-06100

    '


    KA - US - 49 State Spec

    • $1.20

  • 035

    pin, dowel (8x14)

    • Part Number: 94301-08140

    '


    KA - US - 49 State Spec

    • $1.17

  • 036

    bolt, flange (6x14)

    • Part Number: 95701-06014-05

    '


    KA - US - 49 State Spec

    • $0.88

  • 037

    bolt, flange (6x32)

    • Part Number: 95701-06032-08

    '


    KA - US - 49 State Spec

    • $1.03

  • 038

    bolt, flange (6x50)

    • Part Number: 95701-06050-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 039

    bolt, flange (8x16)

    • Part Number: 95701-08016-08

    '


    KA - US - 49 State Spec

    • $0.98

  • 040

    bolt, flange (10x105)

    • Part Number: 95801-10105-08

    '


    KA - US - 49 State Spec

    • $2.65
