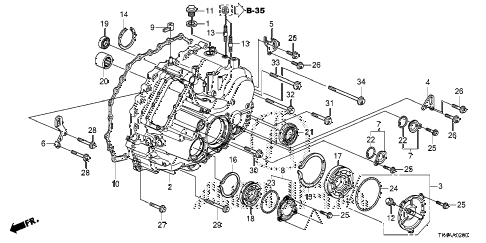

2013 TL ADV(SHAWD) 4 DOOR 6AT AT TRANSMISSION CASE diagram
Back to Top
washer, sealing (24mm)case, transmissioncap assy. a, l. sidehanger a, transmissionhanger b, transmissionhanger c, transmissioncap assy. b, l. sidecap assy. b, l. sidecap assy. b, l. sidecap assy. b, l. sidecap assy. c, l. sidecap, breathergasket, torque converter casebolt, filler (atf)bolt, sealing (10mm)bolt, stud (6x28)bolt, stud (6x28)shim a (89mm) (0.85)shim b (89mm) (0.92)shim c (89mm) (0.99)shim d (89mm) (1.06)shim e (89mm) (1.13)shim f (89mm) (1.20)shim g (89mm) (1.27)shim h (89mm) (1.34)shim i (89mm) (1.41)shim j (89mm) (1.48)shim k (89mm) (1.55)shim l (89mm) (1.62)shim m (89mm) (1.69)shim n (89mm) (1.76)shim o (89mm) (1.83)shim p (89mm) (1.90)shim q (89mm) (1.97)shim r (89mm) (2.04)shim s (89mm) (2.11)shim t (89mm) (2.18)ring, snap (100mm)ring, snap (72mm)bearing, ball (33x100x19.5/15)bearing, ball (27x72x19/17)bearing, ball (12x28x7)bearing, needle (23x40x31.5)oil seal (42x58x12.5)o-ring (28x2.2) (nok)o-ring (28x2.2) (nok)o-ring (83x2.3)o-ring (116.7x2.2)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (8x20)bolt, flange (8x20)bolt, flange (8x20)bolt, flange (8x20)bolt, flange (8x40)bolt, flange (8x55)bolt, flange (8x55)bolt, flange (8x75)bolt, flange (10x40)bolt, flange (10x50)bolt, flange (10x70)bolt, flange (10x80)bolt, flange (10x95)
