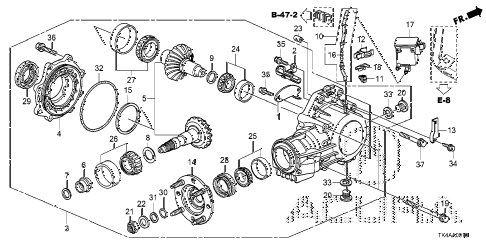

2013 TL ADV(SHAWD) 4 DOOR 6AT AT TRANSFER diagram
Back to Top
plate, breathergutter, oiltransfer assy.cover, transfergear set, transfer hypoidspacer, pinionwasher, thrust (32.1x37x1)shim a (40mm) (0.72)shim b (40mm) (0.75)shim c (40mm) (0.78)shim d (40mm) (0.81)shim e (40mm) (0.84)shim f (40mm) (0.87)shim g (40mm) (0.90)shim h (40mm) (0.93)shim i (40mm) (0.96)shim j (40mm) (0.99)shim k (40mm) (1.02)shim l (40mm) (1.05)shim m (40mm) (1.08)shim n (40mm) (1.11)shim o (40mm) (1.14)shim (25mm) (1.70)shim (25mm) (1.73)shim (25mm) (1.76)shim (25mm) (1.79)shim (25mm) (1.82)shim (25mm) (1.85)shim (25mm) (1.88)shim (25mm) (1.91)shim (25mm) (1.94)shim (25mm) (1.97)shim (25mm) (2.00)shim (25mm) (2.03)shim (25mm) (2.06)shim (25mm) (2.09)shim (25mm) (2.12)shim (25mm) (2.15)shim (25mm) (2.18)shim (25mm) (2.21)shim (25mm) (2.24)tube sub-assy., transfer breatherclamp, breather tubeclamp, breather tube (black)stay, transfer breatherflange, companionshim a (80mm) (1.52)shim b (80mm) (1.55)shim c (80mm) (1.58)shim d (80mm) (1.61)shim e (80mm) (1.64)shim f (80mm) (1.67)shim g (80mm) (1.70)shim h (80mm) (1.73)shim i (80mm) (1.76)shim j (80mm) (1.79)shim k (80mm) (1.82)shim l (80mm) (1.85)shim m (80mm) (1.88)shim n (80mm) (1.91)shim o (80mm) (1.94)shim p (80mm) (1.97)shim q (80mm) (2.00)shim r (80mm) (2.03)shim s (80mm) (2.06)shim t (80mm) (2.09)shim u (80mm) (2.12)shim v (80mm) (2.15)shim w (80mm) (2.18)shim x (80mm) (2.21)shim y (80mm) (2.24)shim z (80mm) (2.27)shim aa (80mm) (2.30)shim ab (80mm) (2.33)shim ac (80mm) (2.36)shim ad (80mm) (2.39)shim ae (80mm) (2.42)shim af (80mm) (2.45)shim ag (80mm) (2.48)shim ah (80mm) (2.51)shim ai (80mm) (2.54)shim aj (80mm) (2.57)shim ak (80mm) (2.60)shim al (80mm) (2.63)shim am (80mm) (2.66)joint, breatherbox, breather tubeclamp, tube (7.5x8.5)bolt, flange (10x105)bolt, plug (20mm)bolt, plug (20mm)nut, hex. (27mm)washer, spring (27mm)pin, dowel (14x20)bearing, taper (25x52x19.25)bearing, taper (32x65x22.25)bearing, taper (40x75x24)bearing, taper (50x80x24)oil seal (42x67x9) (nok)oil seal (48x67x7.5)o-ring (28x2.6)ring, back-up (28mm)o-ring (120.7x2.4) (nok)washer, drain plug (20mm)washer, drain plug (20mm)bolt, flange (6x10)bolt, flange (6x16)bolt, flange (6x16)bolt, flange (8x25)bolt, flange (10x50)
