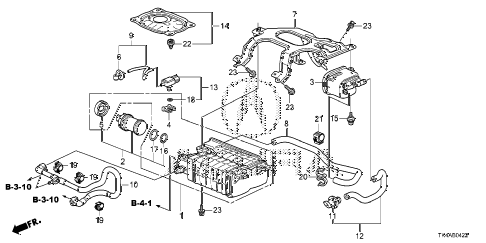

2013 TL ADV(SHAWD) 4 DOOR 6AT CANISTER (4WD) diagram
  • 001

    canister assy.

    • Part Number: 17011-TK5-A01

    '


    KA - US - 49 State Spec

    • $149.38

  • 002

    valve assy., canister vent shut

    • Part Number: 17311-TA0-A01

    '


    KA - US - 49 State Spec

    • $62.27

  • 003

    filter, canister

    • Part Number: 17315-TP7-A01

    '


    KA - US - 49 State Spec

    • $219.83

  • 004

    retainer

    • Part Number: 17321-SDA-A01

    '


    KA - US - 49 State Spec

    • $1.38

  • 005

    cap

    • Part Number: 17321-TA0-A01

    '


    KA - US - 49 State Spec

    • $5.83

  • 006

    joint, pressure sensor

    • Part Number: 17355-S9V-A01

    '


    KA - US - 49 State Spec

    • $3.63

  • 007

    bracket, canister

    • Part Number: 17358-TK5-A00

    '


    KA - US - 49 State Spec

    • $29.02

  • 008

    tube, drain

    • Part Number: 17372-TK5-A00

    '


    KA - US - 49 State Spec

    • $14.88

  • 009

    tube assy., pressure sensor

    • Part Number: 17382-TK5-A00

    '


    KA - US - 49 State Spec

    • $4.92

  • 010

    tube b, fuel vent (orvr)

    • Part Number: 17726-TK5-A02

    '


    KA - US - 49 State Spec

    • $78.18

  • 011

    joint, drain tube

    • Part Number: 17742-STK-A01

    '


    KA - US - 49 State Spec

    • $2.08

  • 012

    tube assy., drain

    • Part Number: 17744-TK5-A01

    '


    KA - US - 49 State Spec

    • $8.18

  • 013

    sensor, vent pressure

    • Part Number: 37940-SNA-A01

    '


    KA - US - 49 State Spec

    • $85.68

  • 014

    lid assy., canister maintenance

    • Part Number: 74665-TK5-A00

    '


    KA - US - 49 State Spec

    • $5.23

  • 015

    bolt, fr. fender

    • Part Number: 90671-SB2-003

    '


    KA - US - 49 State Spec

    • $5.02

  • 016

    o-ring

    • Part Number: 91391-TA0-A01

    '


    KA - US - 49 State Spec

    • $1.60

  • 017

    o-ring

    • Part Number: 91392-TA0-A01

    '


    KA - US - 49 State Spec

    • $2.10

  • 018

    o-ring

    • Part Number: 91394-SDA-A01

    '


    KA - US - 49 State Spec

    • $1.97

  • 019

    clip, fuel tube

    • Part Number: 91591-TK5-A01

    '


    KA - US - 49 State Spec

    • $0.48

  • 020

    clip, drain tube

    • Part Number: 91593-TK5-A01

    '


    KA - US - 49 State Spec

    • $1.73

  • 021

    clip, drain tube

    • Part Number: 91595-SCV-A01

    '


    KA - US - 49 State Spec

    • $1.45

  • 022

    clip, fuel maintenance hole cap

    • Part Number: 91601-TA0-003

    '


    KA - US - 49 State Spec

    • $0.50

  • 023

    bolt-washer (6x20)

    • Part Number: 93405-06020-04

    '


    KA - US - 49 State Spec

    • $1.02
