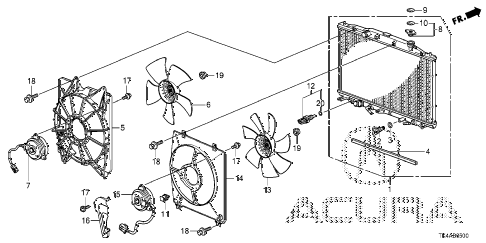

2013 TL ADV(SHAWD) 4 DOOR 6AT RADIATOR (DENSO) diagram
  • 001

    radiator

    • Part Number: 19010-RK1-A61

    '


    KA - US - 49 State Spec

    • $242.75

  • 002

    bolt, drain (denso)

    • Part Number: 19011-PH1-621

    '


    KA - US - 49 State Spec

    • $6.60

  • 003

    gasket, drain (denso)

    • Part Number: 19012-671-300

    '


    KA - US - 49 State Spec

    • $2.07

  • 004

    seal (lower)

    • Part Number: 19014-RK1-A01

    '


    KA - US - 49 State Spec

    • $15.60

  • 005

    shroud

    • Part Number: 19015-RK1-A01

    '


    KA - US - 49 State Spec

    • $20.98

  • 006

    fan, cooling

    • Part Number: 19020-RGL-A01

    '


    KA - US - 49 State Spec

    • $66.18

  • 007

    motor, cooling fan (denso)

    • Part Number: 19030-R70-A01

    '


    KA - US - 49 State Spec

    • $159.35

  • 008

    cap, radiator (denso)

    • Part Number: 19045-RAA-003

    '


    KA - US - 49 State Spec

    • $16.13

  • 010

    label, radiator cap

    • Part Number: 19046-RAA-A00

    '


    KA - US - 49 State Spec

    • $2.55

  • 011

    clip, harness

    • Part Number: 32175-PDA-E01

    '


    KA - US - 49 State Spec

    • $6.42

  • 012

    sensor assy., water temperature (denso)

    • Part Number: 37870-RTA-005

    '


    KA - US - 49 State Spec

    • $38.18

  • 013

    fan, cooling

    • Part Number: 38611-R70-A01

    '


    KA - US - 49 State Spec

    • $47.73

  • 014

    shroud sub-assy.

    • Part Number: 38615-RK1-A01

    '


    KA - US - 49 State Spec

    • $41.82

  • 015

    motor, cooling fan

    • Part Number: 38616-RK1-A51

    '


    KA - US - 49 State Spec

    • $147.32

  • 016

    cover, fan motor

    • Part Number: 38619-RK1-A01

    '


    KA - US - 49 State Spec

    • $1.98

  • 017

    screw-washer (4x11)

    • Part Number: 90051-P5A-004

    '


    KA - US - 49 State Spec

    • $1.68

  • 018

    bolt-washer (6x16) (denso)

    • Part Number: 90042-PAA-A01

    '


    KA - US - 49 State Spec

    • $1.37

  • 019

    nut, hex. (5mm) (denso)

    • Part Number: 90043-PD2-003

    '


    KA - US - 49 State Spec

    • $4.58

  • 020

    o-ring (denso)

    • Part Number: 91307-RTA-005

    '


    KA - US - 49 State Spec

    • $2.07
