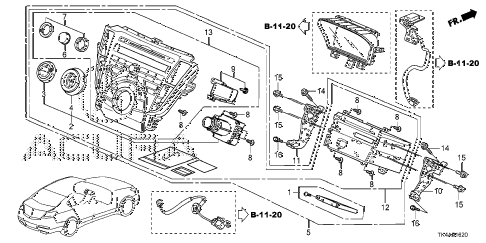

2013 TL ADV(SHAWD) 4 DOOR 6AT CENTER MODULE (NAVIGATION) diagram
  • 001

    hdd unit

    • Part Number: 39010-TK4-A12

    '


    KA - US - 49 State Spec

    • $599.08

  • 002

    switch assy., multi position

    • Part Number: 39050-TK4-A11

    '


    KA - US - 49 State Spec

    • $245.83

  • 003

    knob assy., multi jog

    • Part Number: 39051-TK4-A11

    '


    KA - US - 49 State Spec

    • $19.70

  • 004

    knob assy., multi jog dial

    • Part Number: 39052-TK4-A11

    '


    KA - US - 49 State Spec

    • $28.23

  • 005

    tuner assy., auto radio *nh716l* (navi)(coo)

    • Part Number: 39100-TK4-320ZA

    (PREMIUM BLACK METALLIC)

    '


    KA - US - 49 State Spec

    • $4,736.87

  • 005

    navi w/ tuner (rmd)(customer pay) (pioneer)

    • Part Number: 39100-TK4-A33ZACP

    '


    KA - US - 49 State Spec

    • $450.41

  • 005

    navi w/ tuner (rmd)(warranty) (pioneer)

    • Part Number: 39100-TK4-A33ZARM

    '


    KA - US - 49 State Spec

    • $450.41

  • 006

    button, power *nh716l*

    • Part Number: 39103-TK4-A12ZB

    (PREMIUM BLACK METALLIC)

    '


    KA - US - 49 State Spec

    • $38.78

  • 007

    knob assy., volume

    • Part Number: 39104-TK4-A31

    '


    KA - US - 49 State Spec

    • $41.00

  • 008

    screw (3x10)

    • Part Number: 39106-TK4-A11

    '


    KA - US - 49 State Spec

    • $0.75

  • 009

    cover

    • Part Number: 39107-TK4-A02

    '


    KA - US - 49 State Spec

    • $13.02

  • 010

    bracket, r. radio (navi)

    • Part Number: 39111-TK4-A10

    '


    KA - US - 49 State Spec

    • $6.90

  • 011

    bracket, l. radio (navi)

    • Part Number: 39161-TK4-A10

    '


    KA - US - 49 State Spec

    • $11.00

  • 012

    navi w/ tuner (rmd)(customer pay) (pioneer)

    • Part Number: 39100-TK4-A33ZACP

    '


    KA - US - 49 State Spec

    • $450.41

  • 012

    navi w/ tuner (rmd)(warranty) (pioneer)

    • Part Number: 39100-TK4-A33ZARM

    '


    KA - US - 49 State Spec

    • $450.41

  • 012

    tuner assy. *nh716l* (no hdd) (pioneer)

    • Part Number: 39176-TK4-A33ZA

    (PREMIUM BLACK METALLIC)

    '


    KA - US - 49 State Spec

    • $4,674.25

  • 013

    panel *nh716l*

    • Part Number: 39179-TK4-A31ZA

    (PREMIUM BLACK METALLIC)

    '


    KA - US - 49 State Spec

    • $1,285.22

  • 014

    bolt-washer (5x25)

    • Part Number: 90133-STX-013

    '


    KA - US - 49 State Spec

    • $0.48

  • 015

    bolt, flange (5x7)

    • Part Number: 91551-SE0-003

    '


    KA - US - 49 State Spec

    • $1.27

  • 016

    bolt-washer (5x12)

    • Part Number: 93401-05012-08

    '


    KA - US - 49 State Spec

    • $0.87
