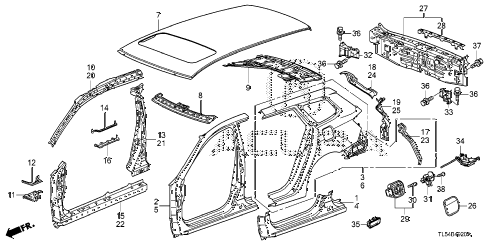

2013 TSX 5 DOOR 5AT OUTER PANEL - REAR PANEL diagram
  • 001

    panel, r. side sill

    • Part Number: 04631-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $177.87

  • 002

    panel set, r. fr. (outer)

    • Part Number: 04635-TL4-G01ZZ

    '


    KA - US - 49 State Spec

    • $504.03

  • 003

    panel set, r. rr. (outer) (dot)

    • Part Number: 04636-TL7-A90ZZ

    '


    KA - US - 49 State Spec

    • $701.28

  • 004

    panel, l. side sill

    • Part Number: 04641-TL4-Q00ZZ

    '


    KA - US - 49 State Spec

    • $183.67

  • 005

    panel set, l. fr. (outer)

    • Part Number: 04645-TL4-Q01ZZ

    '


    KA - US - 49 State Spec

    • $478.62

  • 006

    panel set, l. rr. (outer) (dot)

    • Part Number: 04646-TL7-A90ZZ

    '


    KA - US - 49 State Spec

    • $701.28

  • 007

    panel, roof (sunroof)

    • Part Number: 62100-TL7-A50ZZ

    '


    KA - US - 49 State Spec

    • $703.47

  • 008

    rail, fr. roof

    • Part Number: 62120-TL2-A50ZZ

    '


    KA - US - 49 State Spec

    • $101.83

  • 009

    rail, rr. roof

    • Part Number: 62130-TL7-305ZZ

    '


    KA - US - 49 State Spec

    • $177.60

  • 010

    stiffener, r. fr. pillar

    • Part Number: 63120-TL7-A51ZZ

    '


    KA - US - 49 State Spec

    • $207.50

  • 011

    separator, fr. pillar inside

    • Part Number: 63136-TL0-G01

    '


    KA - US - 49 State Spec

    • $10.15

  • 012

    separator, fr. pillar (outer)

    • Part Number: 63138-TL0-G01

    '


    KA - US - 49 State Spec

    • $9.22

  • 013

    stiffener set, r. center pillar

    • Part Number: 63210-TL2-306ZZ

    '


    KA - US - 49 State Spec

    • $203.75

  • 014

    separator, center pillar (outer)

    • Part Number: 63217-TL0-G01

    '


    KA - US - 49 State Spec

    • $10.15

  • 015

    reinforcement, r. side sill

    • Part Number: 63220-TL2-305ZZ

    '


    KA - US - 49 State Spec

    • $341.25

  • 016

    separator, center pillar (inside)

    • Part Number: 63229-TL0-G01

    '


    KA - US - 49 State Spec

    • $13.27

  • 017

    extension, r. quarter (lower)

    • Part Number: 63310-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $20.65

  • 018

    gutter, r. rr. pillar (upper)

    • Part Number: 63320-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $46.67

  • 019

    gutter, r. rr. pillar (lower)

    • Part Number: 63330-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $74.68

  • 020

    stiffener, l. fr. pillar

    • Part Number: 63520-TL7-A51ZZ

    '


    KA - US - 49 State Spec

    • $207.50

  • 021

    stiffener set, l. center pillar

    • Part Number: 63610-TL2-306ZZ

    '


    KA - US - 49 State Spec

    • $203.75

  • 022

    reinforcement, l. side sill

    • Part Number: 63620-TL2-305ZZ

    '


    KA - US - 49 State Spec

    • $341.25

  • 023

    extension, l. quarter (lower)

    • Part Number: 63710-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $20.65

  • 024

    gutter, l. rr. pillar (upper)

    • Part Number: 63720-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $46.67

  • 025

    gutter, l. rr. pillar (lower)

    • Part Number: 63730-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $74.68

  • 026

    lid, fuel filler

    • Part Number: 63910-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $39.58

  • 027

    panel, rr.

    • Part Number: 66100-TL7-A00ZZ

    '


    KA - US - 49 State Spec

    • $298.53

  • 028

    stiffener, rr. bumper face

    • Part Number: 66115-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $29.58

  • 029

    adapter assy., fuel lid

    • Part Number: 74480-TL4-G10

    '


    KA - US - 49 State Spec

    • $78.22

  • 030

    lifter, fuel lid push

    • Part Number: 74486-TF0-013

    '


    KA - US - 49 State Spec

    • $19.10

  • 031

    grommet, fuel filler

    • Part Number: 74490-TL4-G10

    '


    KA - US - 49 State Spec

    • $9.37

  • 032

    gusset, r. rr. panel

    • Part Number: 74621-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $22.40

  • 033

    gusset, l. rr. panel

    • Part Number: 74671-TL4-G00ZZ

    '


    KA - US - 49 State Spec

    • $22.40

  • 034

    actuator assy., fuel lid

    • Part Number: 74700-TL4-G11

    '


    KA - US - 49 State Spec

    • $86.60

  • 035

    outlet assy., rr. air

    • Part Number: 75450-SDE-T00

    '


    KA - US - 49 State Spec

    • $28.52

  • 036

    bolt-washer (8mm)

    • Part Number: 90101-SFE-000

    '


    KA - US - 49 State Spec

    • $0.53

  • 037

    bolt-washer (8x16)

    • Part Number: 93404-08016-08

    '


    KA - US - 49 State Spec

    • $1.05

  • 038

    screw, tapping (5x14)

    • Part Number: 93913-153G0

    '


    KA - US - 49 State Spec

    • $1.20
