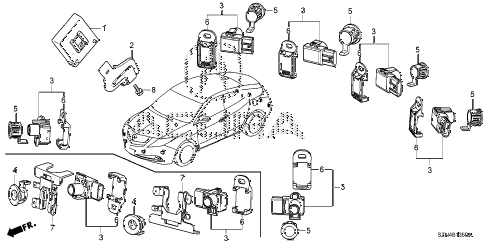

2013 ZDX 5 DOOR 6AT PARKING SENSOR diagram
  • 001

    sensor unit, parking

    • Part Number: 39670-SZN-A01

    '


    KA - US - 49 State Spec

    • $266.97

  • 002

    bracket, parking sensor unit

    • Part Number: 39671-SZN-X00

    '


    KA - US - 49 State Spec

    • $119.70

  • 003

    sensor assy., parking *nh782m*

    • Part Number: 39680-TL0-G01B2

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $227.73

  • 003

    sensor assy., parking *nh677p*

    • Part Number: 39680-TL0-G01YM

    (ASPEN WHITE PEARL)

    '


    KA - US - 49 State Spec

    • $283.72

  • 003

    sensor assy., parking *nh731p*

    • Part Number: 39680-TL0-G01ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $255.77

  • 003

    sensor assy., parking *nh743m*

    • Part Number: 39680-TL0-G01ZG

    (BURAN SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $289.32

  • 005

    retainer, parking sensor *nh782m*

    • Part Number: 39681-TL0-G01B4

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $39.15

  • 005

    retainer, parking sensor *nh677p*

    • Part Number: 39681-TL0-G01YD

    (ASPEN WHITE PEARL)

    '


    KA - US - 49 State Spec

    • $43.92

  • 005

    retainer, parking sensor *nh731p*

    • Part Number: 39681-TL0-G01ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $39.92

  • 005

    retainer, parking sensor *nh743m*

    • Part Number: 39681-TL0-G01ZG

    (BURAN SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $43.92

  • 006

    clamp

    • Part Number: 39682-TL0-G01

    '


    KA - US - 49 State Spec

    • $11.00

  • 008

    bolt-washer (6x20)

    • Part Number: 93404-06020-08

    '


    KA - US - 49 State Spec

    • $0.88
