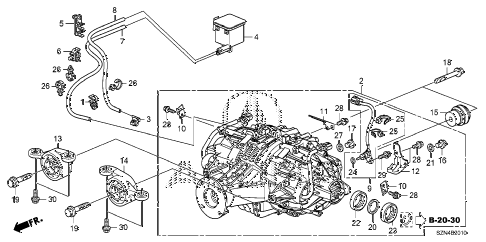

REAR DIFFERENTIAL - MOUNT - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: clamp, breather tube Part Number: 29421-RDK-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.50

Ref #: 002	Honda Part: carrier assy., rr. differential Part Number: 41200-RWG-080 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $3,777.22

Ref #: 003	Honda Part: body, breather end Part Number: 41935-RDL-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $5.87

Ref #: 004	Honda Part: box, breather tube Part Number: 41935-RP8-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $14.45

Ref #: 005	Honda Part: clamp, breather Part Number: 41936-PNZ-013 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $3.10

Ref #: 006	Honda Part: clamp, breather tube Part Number: 41936-RYG-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.63

Ref #: 007	Honda Part: tube a, breather Part Number: 41937-RP8-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.77

Ref #: 008	Honda Part: tube b, breather Part Number: 41938-RP8-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.38

Ref #: 009	Honda Part: sensor assy., temperature (atf) Part Number: 48160-RWG-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $68.40

Ref #: 010	Honda Part: stay a, rr. differential cable Part Number: 48321-RWG-000 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.88

Ref #: 011	Honda Part: stay d, rr. differential cable Part Number: 48324-RWG-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.78

Ref #: 012	Honda Part: cover, temperature sensor (atf) Part Number: 48326-RWG-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $8.45

Ref #: 013	Honda Part: rubber, r. rr. differential mounting (fr) Part Number: 50710-TK5-A51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $54.10

Ref #: 014	Honda Part: rubber, l. rr. differential mounting (fr) Part Number: 50720-TK5-A51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $54.10

Ref #: 015	Honda Part: rubber, l. rr. differential mounting Part Number: 50740-STX-A51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $27.83

Ref #: 016	Honda Part: bolt, plug (18mm) Part Number: 90081-PVH-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $9.40

Ref #: 017	Honda Part: bolt, drain plug (20mm) Part Number: 90081-PWT-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $9.75

Ref #: 018	Honda Part: bolt, flange (14x95) Part Number: 90162-STX-A00 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $3.98

Ref #: 019	Honda Part: bolt, flange (14x59) Part Number: 90163-STX-A00 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $6.22

Ref #: 020	Honda Part: washer, thrust axle Part Number: 90402-RJC-000 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $6.15

Ref #: 021	Honda Part: washer, drain plug (18mm) Part Number: 90471-PX4-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.33

Ref #: 022	Honda Part: oil seal (34.7x54x9) Part Number: 91205-RWG-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $8.73

Ref #: 023	Honda Part: dust seal (40x55x7.5) Part Number: 91206-RWG-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $9.35

Ref #: 024	Honda Part: o-ring (12x2.4) (nok) Part Number: 91303-RAY-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.32

Ref #: 025	Honda Part: band, wire harness (90.4mm) (black) Part Number: 91507-PT3-A01 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.42

Ref #: 026	Honda Part: clip, harness band (151.5mm) (natural) Part Number: 91540-S30-003 Standard Qty.: 003 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.55

Ref #: 027	Honda Part: washer, drain plug (20mm) Part Number: 94109-20000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.73

Ref #: 028	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 005 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.00

Ref #: 029	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.88

Ref #: 030	Honda Part: bolt, flange (10x25) Part Number: 95701-10025-08 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.30

Ref #: 001	Honda Part: clamp, breather tube Part Number: 29421-RDK-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.50

Ref #: 002	Honda Part: carrier assy., rr. differential Part Number: 41200-RWG-080 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$3,777.22

Ref #: 003	Honda Part: body, breather end Part Number: 41935-RDL-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$5.87

Ref #: 004	Honda Part: box, breather tube Part Number: 41935-RP8-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$14.45

Ref #: 005	Honda Part: clamp, breather Part Number: 41936-PNZ-013 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$3.10

Ref #: 006	Honda Part: clamp, breather tube Part Number: 41936-RYG-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.63

Ref #: 007	Honda Part: tube a, breather Part Number: 41937-RP8-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.77

Ref #: 008	Honda Part: tube b, breather Part Number: 41938-RP8-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.38

Ref #: 009	Honda Part: sensor assy., temperature (atf) Part Number: 48160-RWG-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$68.40

Ref #: 010	Honda Part: stay a, rr. differential cable Part Number: 48321-RWG-000 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.88

Ref #: 011	Honda Part: stay d, rr. differential cable Part Number: 48324-RWG-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.78

Ref #: 012	Honda Part: cover, temperature sensor (atf) Part Number: 48326-RWG-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$8.45

Ref #: 013	Honda Part: rubber, r. rr. differential mounting (fr) Part Number: 50710-TK5-A51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$54.10

Ref #: 014	Honda Part: rubber, l. rr. differential mounting (fr) Part Number: 50720-TK5-A51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$54.10

Ref #: 015	Honda Part: rubber, l. rr. differential mounting Part Number: 50740-STX-A51 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$27.83

Ref #: 016	Honda Part: bolt, plug (18mm) Part Number: 90081-PVH-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$9.40

Ref #: 017	Honda Part: bolt, drain plug (20mm) Part Number: 90081-PWT-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$9.75

Ref #: 018	Honda Part: bolt, flange (14x95) Part Number: 90162-STX-A00 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$3.98

Ref #: 019	Honda Part: bolt, flange (14x59) Part Number: 90163-STX-A00 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$6.22

Ref #: 020	Honda Part: washer, thrust axle Part Number: 90402-RJC-000 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$6.15

Ref #: 021	Honda Part: washer, drain plug (18mm) Part Number: 90471-PX4-000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.33

Ref #: 022	Honda Part: oil seal (34.7x54x9) Part Number: 91205-RWG-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$8.73

Ref #: 023	Honda Part: dust seal (40x55x7.5) Part Number: 91206-RWG-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$9.35

Ref #: 024	Honda Part: o-ring (12x2.4) (nok) Part Number: 91303-RAY-003 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.32

Ref #: 025	Honda Part: band, wire harness (90.4mm) (black) Part Number: 91507-PT3-A01 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.42

Ref #: 026	Honda Part: clip, harness band (151.5mm) (natural) Part Number: 91540-S30-003 Standard Qty.: 003 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.55

Ref #: 027	Honda Part: washer, drain plug (20mm) Part Number: 94109-20000 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.73

Ref #: 028	Honda Part: bolt, flange (6x12) Part Number: 95701-06012-08 Standard Qty.: 005 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.00

Ref #: 029	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.88

Ref #: 030	Honda Part: bolt, flange (10x25) Part Number: 95701-10025-08 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.30
