P.S. LINES (1)
View large diagramHide diagramView diagramView printable catalogTranslate

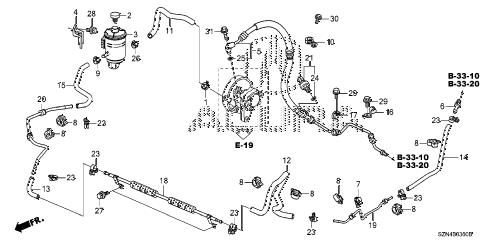

2013 ZDX 5 DOOR 6AT P.S. LINES (1) diagram

  • 001

    clamp, water hose

    Part Number: 19513-REA-Z01

    ''


    KA - US - 49 State Spec

    • $1.37

  • 002

    cap, power steering tank

    Part Number: 53697-SZN-A01

    ''


    KA - US - 49 State Spec

    • $1.57

  • 003

    tank, power steering oil

    Part Number: 53701-SZN-A01

    ''


    KA - US - 49 State Spec

    • $16.60

  • 004

    bracket, power steering oil tank

    Part Number: 53710-STX-A00

    ''


    KA - US - 49 State Spec

    • $42.67

  • 005

    hose, power steering feed

    Part Number: 53713-SZN-A52

    ''


    KA - US - 49 State Spec

    • $126.28

  • 006

    pipe, return (10mm)

    Part Number: 53720-SP0-020

    ''


    KA - US - 49 State Spec

    • $9.78

  • 007

    clip, return pipe

    Part Number: 53728-S0X-A01

    ''


    KA - US - 49 State Spec

    • $1.85

  • 008

    clip, return hose (natural)

    Part Number: 53729-S0X-003

    ''


    KA - US - 49 State Spec

    • $2.72

  • 009

    clamp d (15.5mm)

    Part Number: 53729-671-003

    ''


    KA - US - 49 State Spec

    • $2.63

  • 010

    clamp, feed hose

    Part Number: 53730-SJC-A00

    ''


    KA - US - 49 State Spec

    • $3.57

  • 011

    tube, suction

    Part Number: 53731-SZN-A00

    ''


    KA - US - 49 State Spec

    • $8.57

  • 012

    hose, oil cooler

    Part Number: 53732-SZN-A01

    ''


    KA - US - 49 State Spec

    • $33.22

  • 013

    hose a, oil tank

    Part Number: 53733-SZN-A01

    ''


    KA - US - 49 State Spec

    • $9.80

  • 014

    hose, power steering return

    Part Number: 53734-SZN-A51

    ''


    KA - US - 49 State Spec

    • $20.72

  • 015

    hose b, oil tank

    Part Number: 53735-SZN-A01

    ''


    KA - US - 49 State Spec

    • $14.63

  • 016

    holder b, power steering pipe

    Part Number: 53736-STX-A00

    ''


    KA - US - 49 State Spec

    • $3.08

  • 017

    stay, feed hose

    Part Number: 53745-STX-A00

    ''


    KA - US - 49 State Spec

    • $3.38

  • 018

    cooler, power steering oil

    Part Number: 53765-SZN-A02

    ''


    KA - US - 49 State Spec

    • $99.03

  • 019

    pipe b, return

    Part Number: 53779-SZN-A01

    ''


    KA - US - 49 State Spec

    • $14.70

  • 020

    pipe c, return

    Part Number: 53780-SZN-A01

    ''


    KA - US - 49 State Spec

    • $13.82

  • 021

    switch assy., power steering pressure (texas)

    Part Number: 56490-P0H-013

    ''


    KA - US - 49 State Spec

    • $48.42

  • 023

    clip, oil hose (nichirin)

    Part Number: 90635-S5A-A02

    ''


    KA - US - 49 State Spec

    • $9.37

  • 024

    o-ring (7.8x1.9)

    Part Number: 91304-P0H-013

    ''


    KA - US - 49 State Spec

    • $0.98

  • 025

    o-ring (14.4x1.9)

    Part Number: 91370-TA0-000

    ''


    KA - US - 49 State Spec

    • $2.60

  • 026

    clamp, tube (d21)

    Part Number: 91405-SS0-003

    ''


    KA - US - 49 State Spec

    • $6.03

  • 027

    bolt-washer (6x12)

    Part Number: 93403-06012-08

    ''


    KA - US - 49 State Spec

    • $1.22

  • 028

    bolt-washer (6x16)

    Part Number: 93403-06016-04

    ''


    KA - US - 49 State Spec

    • $1.33

  • 029

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    ''


    KA - US - 49 State Spec

    • $1.28

  • 030

    bolt, flange (6x16)

    Part Number: 95701-06016-05

    ''


    KA - US - 49 State Spec

    • $0.98

  • 031

    bolt, flange (6x25)

    Part Number: 95801-06025-08

    ''


    KA - US - 49 State Spec

    • $1.27
