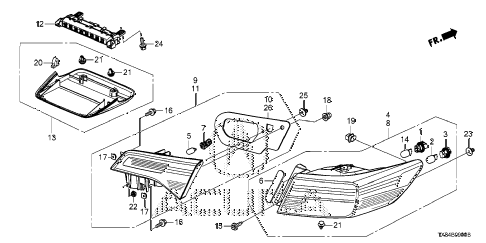

2014 ILX BASE 4 DOOR CVT TAILLIGHT diagram
Back to Top
socket (t20)bulb (t20w 12v 21w)socket (t20 s)taillight assy., r.bulb (t16) (12v 16w)cap, bezelsocket (t16)taillight assy., l.light assy., r. lidgasket, r. baselight assy., l. lidlight assy., high mount stopcover assy., high mount stop light *nh556l*bulb (12v 21w/5w) (stanley)bolt-washer (5x16)bolt-washer (5x12)bolt-washer (5x12)nut, garnish (m5)nut, garnish (m5)nut, hex. cap (5mm)clip, rr. combination lightclip, snap fitting (po)(natural)clip, door lining (light blue)clip, door lining (light blue)clip, door lining (light blue)clip, door end garnish (light brown)(seal)grommet, taillightbolt-washer (6x16)grommet, taillightgasket, l. base
