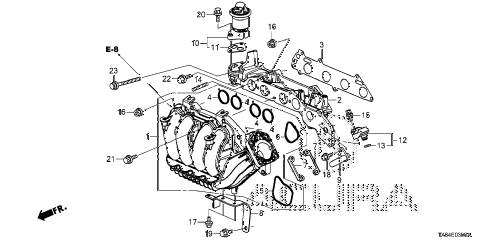

2014 ILX BASE 4 DOOR CVT INTAKE MANIFOLD diagram
  • 001

    chamber assy., in. manifold

    • Part Number: 17010-RW0-A00

    '


    KL - California Spec

    • $294.15

  • 002

    manifold, in.

    • Part Number: 17100-RW0-A00

    '


    KL - California Spec

    • $334.27

  • 003

    gasket, in. manifold

    • Part Number: 17105-RW0-A01

    '


    KL - California Spec

    • $21.73

  • 004

    gasket, in. port

    • Part Number: 17106-RW0-A01

    '


    KL - California Spec

    • $9.97

  • 005

    gasket, throttle body

    • Part Number: 17107-RW0-A01

    '


    KL - California Spec

    • $10.50

  • 006

    gasket, egr port

    • Part Number: 17108-RW0-A01

    '


    KL - California Spec

    • $9.97

  • 007

    plate, throttle flange

    • Part Number: 17116-RB0-000

    '


    KL - California Spec

    • $5.73

  • 008

    stay a, in. manifold

    • Part Number: 17132-RW0-A00

    '


    KL - California Spec

    • $23.50

  • 009

    joint, egr

    • Part Number: 17147-RW0-A01

    '


    KL - California Spec

    • $26.97

  • 010

    valve set, egr

    • Part Number: 18011-RBJ-000

    '


    KL - California Spec

    • $265.99

  • 011

    gasket, egr valve (ishino gasket)

    • Part Number: 18715-PB2-000

    '


    KL - California Spec

    • $7.03

  • 012

    sensor assy., map

    • Part Number: 37830-RNA-A01

    '


    KL - California Spec

    • $57.07

  • 013

    o-ring

    • Part Number: 37835-PGK-A01

    '


    KL - California Spec

    • $6.35

  • 014

    bolt, stud (8x32)

    • Part Number: 92900-08032-1B

    '


    KL - California Spec

    • $1.30

  • 015

    screw-washer (5x20)

    • Part Number: 93892-05020-08

    '


    KL - California Spec

    • $0.67

  • 016

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KL - California Spec

    • $0.25

  • 017

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KL - California Spec

    • $0.88

  • 019

    bolt, flange (8x16)

    • Part Number: 95701-08016-08

    '


    KL - California Spec

    • $0.98

  • 020

    bolt, flange (8x25)

    • Part Number: 95701-08025-08

    '


    KL - California Spec

    • $0.43

  • 021

    bolt, flange (8x32)

    • Part Number: 95701-08032-08

    '


    KL - California Spec

    • $1.28

  • 022

    bolt, flange (8x35)

    • Part Number: 95701-08035-08

    '


    KL - California Spec

    • $0.85

  • 023

    bolt, flange (8x100)

    • Part Number: 95701-08100-08

    '


    KL - California Spec

    • $1.63
