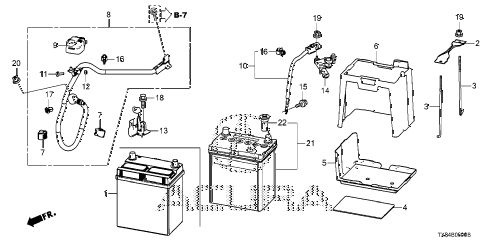

2014 ILX TECH 4 DOOR CVT BATTERY diagram
Back to Top
battery (44b19l-s) (gr151r)(340cca)(57rc)plate, battery settingbolt, battery setting (210mm)bolt, battery setting (210mm)rubber, sheetbox, battery (38b19)cover, battery (b19)holder, corrugated (10mm) (black)holder, corrugated (10mm) (black)cable assy., startercover, battery terminalcable assy., battery groundbolt, battery terminalnut, battery terminalbracket, sub relay boxsensor assy., battery (l)bolt, ground (6x16)band, harness (120mm) (black)band, harness (120mm) (black)clip, harness band (155.3mm) (black)bolt-washer (6x16)nut, flange (6mm)nut, flange (6mm)nut-washer (8mm)
