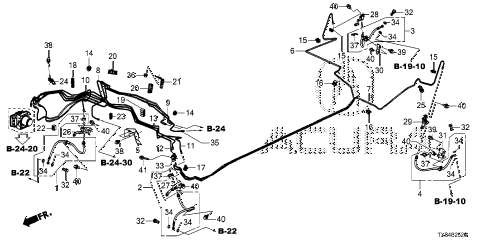

2014 ILX TECH 4 DOOR CVT BRAKE LINES diagram
  • 001

    hose set, r. fr. brake

    • Part Number: 01464-TR0-A02

    '


    KL - California Spec

    • $20.68

  • 002

    hose set, l. fr. brake

    • Part Number: 01465-TR0-A02

    '


    KL - California Spec

    • $21.05

  • 003

    hose set, r. rr. brake (disk)

    • Part Number: 01466-TR3-A52

    '


    KL - California Spec

    • $33.97

  • 004

    hose set, l. rr. brake (disk)

    • Part Number: 01468-TR3-A52

    '


    KL - California Spec

    • $33.97

  • 005

    baffle, brake pipe

    • Part Number: 46318-TR2-A00

    '


    KL - California Spec

    • $23.32

  • 006

    pipe c, brake

    • Part Number: 46330-TR0-A00

    '


    KL - California Spec

    • $19.62

  • 007

    pipe d, brake

    • Part Number: 46340-TR0-A00

    '


    KL - California Spec

    • $18.35

  • 008

    pipe u, brake

    • Part Number: 46374-TX8-A00

    '


    KL - California Spec

    • $12.95

  • 009

    pipe v, brake

    • Part Number: 46375-TX8-A01

    '


    KL - California Spec

    • $14.72

  • 010

    pipe w, brake

    • Part Number: 46376-TR2-A00

    '


    KL - California Spec

    • $22.25

  • 011

    pipe x, brake

    • Part Number: 46377-TX8-A00

    '


    KL - California Spec

    • $15.65

  • 012

    pipe y, brake

    • Part Number: 46378-TR2-A01

    '


    KL - California Spec

    • $28.42

  • 013

    pipe z, brake

    • Part Number: 46379-TX8-A00

    '


    KL - California Spec

    • $12.95

  • 014

    grommet a, brake pipe

    • Part Number: 46380-SH3-000

    '


    KL - California Spec

    • $3.83

  • 015

    clip g, brake pipe

    • Part Number: 46391-SDA-A01

    '


    KL - California Spec

    • $1.00

  • 016

    clip, brake pipe

    • Part Number: 46391-TR0-A11

    '


    KL - California Spec

    • $3.57

  • 017

    clip, brake pipe

    • Part Number: 46392-SAA-901

    '


    KL - California Spec

    • $2.78

  • 018

    clip, brake pipe

    • Part Number: 46392-TR3-A01

    '


    KL - California Spec

    • $3.02

  • 020

    clip, brake pipe

    • Part Number: 46393-TR2-A11

    '


    KL - California Spec

    • $18.82

  • 021

    bracket, brake pipe

    • Part Number: 46393-TR2-A50

    '


    KL - California Spec

    • $4.67

  • 022

    clip, brake pipe

    • Part Number: 46394-S9A-G71

    '


    KL - California Spec

    • $4.23

  • 023

    clip, brake pipe

    • Part Number: 46395-TR3-A01

    '


    KL - California Spec

    • $3.02

  • 024

    clip, brake pipe

    • Part Number: 46396-TR0-A00

    '


    KL - California Spec

    • $2.63

  • 025

    clip, brake pipe

    • Part Number: 46398-TR0-A01

    '


    KL - California Spec

    • $3.57

  • 026

    bracket, r. fr. brake hose

    • Part Number: 46424-TR0-A00

    '


    KL - California Spec

    • $6.97

  • 027

    bracket, l. fr. brake hose

    • Part Number: 46425-TR0-A00

    '


    KL - California Spec

    • $6.97

  • 028

    bracket a, r. rr. brake hose

    • Part Number: 46435-TR0-A00

    '


    KL - California Spec

    • $5.05

  • 029

    bracket a, l. rr. brake hose

    • Part Number: 46436-TR0-A00

    '


    KL - California Spec

    • $5.05

  • 030

    bracket b, r. rr. brake hose

    • Part Number: 46437-TR0-A50

    '


    KL - California Spec

    • $5.35

  • 031

    bracket b, l. rr. brake hose

    • Part Number: 46438-TR0-A50

    '


    KL - California Spec

    • $5.35

  • 032

    bolt, oil

    • Part Number: 46462-SE0-000

    '


    KL - California Spec

    • $5.52

  • 033

    joint, brake four-way

    • Part Number: 46470-SNA-A01

    '


    KL - California Spec

    • $18.78

  • 034

    gasket, oil bolt

    • Part Number: 46472-568-000

    '


    KL - California Spec

    • $3.15

  • 035

    pipe, pressure

    • Part Number: 57380-TR2-A01

    '


    KL - California Spec

    • $23.13

  • 036

    nut, paint cutting (6mm)

    • Part Number: 90361-SV4-003

    '


    KL - California Spec

    • $1.67

  • 037

    clip, brake hose

    • Part Number: 90651-538-000

    '


    KL - California Spec

    • $4.58

  • 037

    clip, brake hose

    • Part Number: 90651-SV1-A01

    '


    KL - California Spec

    • $1.38

  • 038

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KL - California Spec

    • $1.00

  • 039

    bolt, flange (8x16)

    • Part Number: 95701-08016-05

    '


    KL - California Spec

    • $0.98

  • 040

    bolt, flange (8x16)

    • Part Number: 95701-08016-08

    '


    KL - California Spec

    • $0.98

  • 041

    bolt, flange (6x30)

    • Part Number: 95801-06030-08

    '


    KL - California Spec

    • $1.03
