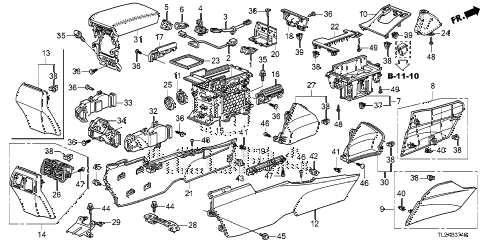

2014 TSX SE 4 DOOR 6MT CONSOLE diagram
  • 001

    jack assy., aux in.

    • Part Number: 39112-TA0-003

    '


    KA - US - 49 State Spec

    • $85.98

  • 002

    cord assy., usb-a

    • Part Number: 39114-TL0-003

    '


    KA - US - 49 State Spec

    • $57.95

  • 003

    cord assy., usb

    • Part Number: 39114-TL0-G01

    '


    KA - US - 49 State Spec

    • $57.95

  • 004

    holder assy., usb cord

    • Part Number: 39115-TL0-G01

    '


    KA - US - 49 State Spec

    • $12.57

  • 005

    cap assy.

    • Part Number: 39620-TA0-003

    '


    KA - US - 49 State Spec

    • $11.50

  • 006

    socket assy.

    • Part Number: 39624-SZ3-L01

    '


    KA - US - 49 State Spec

    • $11.02

  • 007

    holder assy., cup *yr381l*

    • Part Number: 77230-TL0-G13ZA

    (WOOD GRAIN)

    '


    KA - US - 49 State Spec

    • $217.98

  • 008

    cover assy., driver instrumentcenter (lower) *nh690l*

    • Part Number: 77285-TL0-G01ZB

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $33.38

  • 009

    cover, passenger instrument center (lower) *nh690l*

    • Part Number: 77286-TL0-G01ZB

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $33.38

  • 010

    panel assy., fr. *yr381l*

    • Part Number: 77297-TL0-G71ZA

    (WOOD GRAIN)

    '


    KA - US - 49 State Spec

    • $207.08

  • 011

    valve, dial *nh1l*

    • Part Number: 77505-TL0-G01ZA

    (BLACK)

    '


    KA - US - 49 State Spec

    • $10.03

  • 012

    panel, r. side *nh690l*

    • Part Number: 83401-TL0-G01ZA

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $52.85

  • 014

    garnish assy., rr. *nh690l*

    • Part Number: 83403-TL0-G11ZB

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $132.23

  • 015

    box, console

    • Part Number: 83404-TL0-G41

    '


    KA - US - 49 State Spec

    • $39.67

  • 016

    rail, r. box

    • Part Number: 83405-TL0-G01

    '


    KA - US - 49 State Spec

    • $5.28

  • 017

    rail, l. box

    • Part Number: 83406-TL0-G01

    '


    KA - US - 49 State Spec

    • $5.28

  • 018

    garnish, center *nh690l*

    • Part Number: 83407-TL0-G01ZA

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $7.70

  • 019

    garnish, cup holder

    • Part Number: 83408-TL0-G02

    '


    KA - US - 49 State Spec

    • $5.56

  • 020

    lid, box (inner)

    • Part Number: 83409-TL0-G21

    '


    KA - US - 49 State Spec

    • $10.45

  • 021

    panel, l. side *nh690l*

    • Part Number: 83411-TL0-G01ZB

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $52.85

  • 022

    panel assy., rr. *yr381l*

    • Part Number: 83412-TL0-G11ZA

    (WOOD GRAIN)

    '


    KA - US - 49 State Spec

    • $168.50

  • 023

    mat, console

    • Part Number: 83413-TL0-G01

    '


    KA - US - 49 State Spec

    • $6.60

  • 024

    boot, change lever (typez)

    • Part Number: 83415-TL0-G64ZB

    '


    KA - US - 49 State Spec

    • $34.17

  • 025

    base, cool valve

    • Part Number: 83417-TL0-G41

    '


    KA - US - 49 State Spec

    • $6.15

  • 026

    outlet assy., rr. *nh690l*

    • Part Number: 83419-TL0-G11ZB

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $132.65

  • 027

    pocket assy. (driver side)

    • Part Number: 83422-TL0-G01

    '


    KA - US - 49 State Spec

    • $41.58

  • 028

    bracket, center console

    • Part Number: 83425-TA0-A00

    '


    KA - US - 49 State Spec

    • $21.55

  • 029

    bracket, rr. center console

    • Part Number: 83426-TL0-G00

    '


    KA - US - 49 State Spec

    • $13.10

  • 030

    pocket assy. (passenger side)

    • Part Number: 83427-TL0-G01

    '


    KA - US - 49 State Spec

    • $41.08

  • 031

    armrest, center (typez)

    • Part Number: 83450-TL0-G34ZD

    '


    KA - US - 49 State Spec

    • $291.80

  • 032

    duct, r. side

    • Part Number: 83463-TL0-G41

    '


    KA - US - 49 State Spec

    • $18.70

  • 033

    duct, l. side

    • Part Number: 83464-TL0-G41

    '


    KA - US - 49 State Spec

    • $20.60

  • 034

    duct, rr.

    • Part Number: 83465-TL0-G41

    '


    KA - US - 49 State Spec

    • $20.60

  • 035

    bolt-washer (6x16)

    • Part Number: 90123-SJA-000

    '


    KA - US - 49 State Spec

    • $1.42

  • 036

    screw, tapping (4x12) (po)

    • Part Number: 90144-TA0-A01

    '


    KA - US - 49 State Spec

    • $1.62

  • 037

    clip, snap fitting (po)(natural)

    • Part Number: 90666-SDA-A01

    '


    KA - US - 49 State Spec

    • $0.50

  • 038

    clip, snap fitting (po)(orange)

    • Part Number: 90666-TA0-A01

    '


    KA - US - 49 State Spec

    • $1.75

  • 039

    clip, snap fitting (po)(orange)

    • Part Number: 90666-TA0-A21

    '


    KA - US - 49 State Spec

    • $2.05

  • 040

    clip, snap fitting

    • Part Number: 90669-SHJ-A01

    '


    KA - US - 49 State Spec

    • $3.15

  • 041

    clip, snap fitting

    • Part Number: 90669-SWA-A01

    '


    KA - US - 49 State Spec

    • $2.25

  • 042

    clip, door lining (light gray)

    • Part Number: 91560-SLJ-J01

    '


    KA - US - 49 State Spec

    • $0.30

  • 043

    clip, pillar garnish (dark green)

    • Part Number: 91560-SYA-J01

    '


    KA - US - 49 State Spec

    • $0.65

  • 044

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 045

    screw-washer (4x12)

    • Part Number: 93894-04012-08

    '


    KA - US - 49 State Spec

    • $0.68

  • 046

    screw, tapping (4x16)

    • Part Number: 93903-14480

    '


    KA - US - 49 State Spec

    • $0.55

  • 047

    screw, tapping (3x12)

    • Part Number: 93903-22320

    '


    KA - US - 49 State Spec

    • $0.37

  • 048

    screw, tapping (3x12)

    • Part Number: 93903-32320

    '


    KA - US - 49 State Spec

    • $0.53

  • 049

    screw, tapping (4x16) (po)

    • Part Number: 93913-24420

    '


    KA - US - 49 State Spec

    • $0.55
