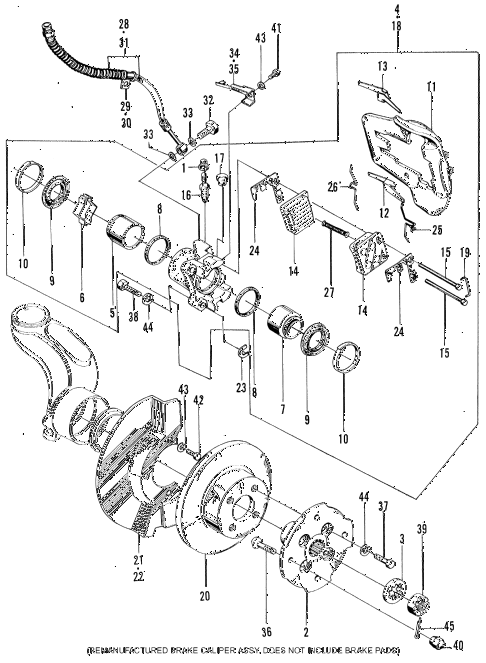

1970 z600 ** 2 DOOR 4MT FRONT DISK BRAKE diagram
Back to Top
cap, bleeder screwhub, fr.washer, fr. hubcaliper assy., r. fr. brakepiston a, fr. brakering, biaspiston b, brakeseal, pistonseal, pistonboot, fr. brakeboot, fr. brakering, retainingring, retainingyoke unit, fr. brakespring a, yokespring b, yokepad, fr. brakepad, fr. brakepin, pad retainingpin, pad retainingscrew, bleederplug, dustcaliper assy., l. fr. brakeclip, pad retainingdisk, fr. brakesplash guard, r. fr. brakesplash guard, l. fr. brakespacer, caliper (0.4mm)spacer, caliper (0.6mm)shim, padshim, padspring a, pad fittingspring b, pad fittingspring, pad releasehose, r. fr. brakeclamp, r. brake hoseclamp, l. brake hosehose, l. fr. brakegasket, oil boltgasket, oil boltguide, r. brake hoseguide, l. brake hosebolt, wheel settingbolt, disk settingbolt, calipernut, cast (22mm)nut, wheel settingbolt, hex. (6x10)bolt, hex. (6x12)bolt, hex. (6x12)washer, spring (6mm)washer, spring (10mm)washer, spring (10mm)pin, split (4.0x35)
