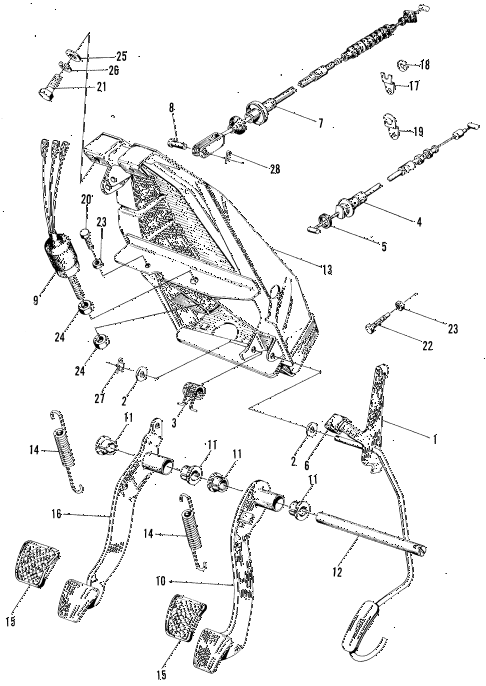

1970 z600 ** 2 DOOR 4MT PEDALS diagram
Back to Top
pedal unit, acceleratorwasher, accelerator pedalwasher, accelerator pedalspring, accelerator pedal returncable assy., throttleseal, throttle cabledamper, accelerator pedalcable assy., clutchpin, clutch cableswitch assy., stop lightpedal, brakebushing, pedalbushing, pedalbushing, pedalbushing, pedalshaft, pedalbracket, pedalspring, pedal returnspring, pedal returncover, pedalcover, pedalpedal, clutchguide, clutch wireseat, rubber wire controlguide, speedometer cablebolt, hex. (6x30)bolt, hex. (6x35)nut, hex. (6mm)nut, hex. (6mm)nut, hex. (10mm)washer, plain (8mm)washer, plain (8mm)washer, spring (8mm)pin, split (2.0x35)pin, split (2.5x30)
