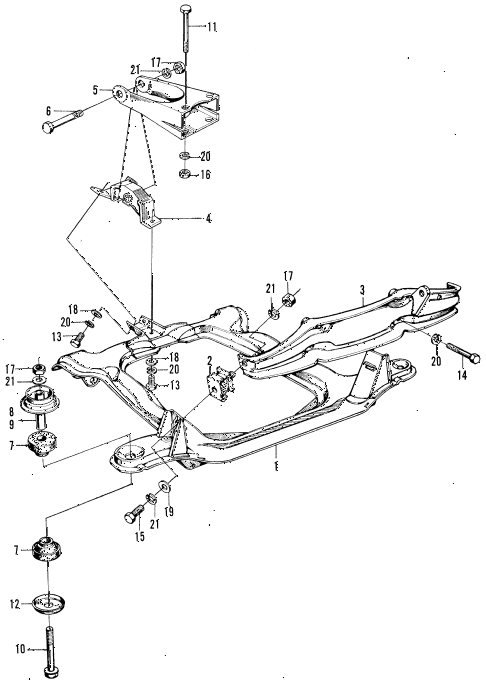

1970 z600 ** 2 DOOR 4MT ENGINE MOUNT diagram
Back to Top
sub-frame, fr.cushion, fr. engine mountingbracket, fr. enginecushion, rr. engine mountingbracket, rr. engine mountingbolt, rr. engine mountingcushion, sub-frame mountingcushion, sub-frame mountingcollar, fr. sub-frame mountingcollar, rr. holder mountingbolt, frame settingbolt, rr. engine bracketwasher, sub-frame mountingbolt, hex. (8x20)bolt, hex. (8x20)bolt, hex. (10x14)nut, hex. (8mm)nut, hex. (10mm)nut, hex. (10mm)nut, hex. (10mm)washer, plain (8mm)washer, plain (8mm)washer, plain (10mm)washer, spring (8mm)washer, spring (8mm)washer, spring (8mm)washer, spring (8mm)washer, spring (10mm)washer, spring (10mm)washer, spring (10mm)washer, spring (10mm)
