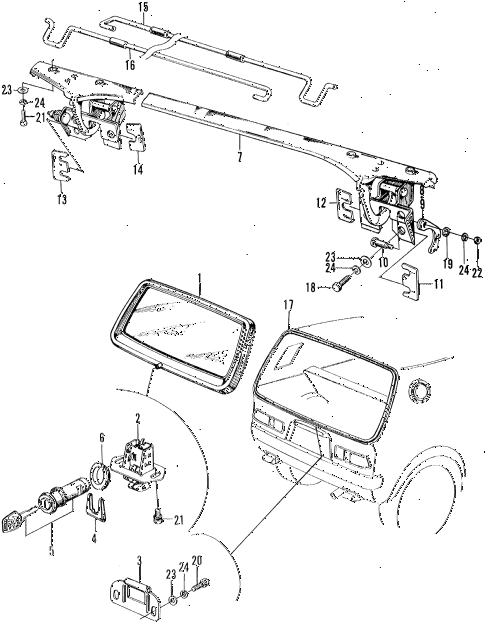

1970 z600 ** 2 DOOR 4MT TAILGATE WINDOW diagram
Back to Top
tailgate unitlock assy., tailgatestriker, tailgatespring, lock cylinder settingcylinder assy., lock (w/key)hinge, tailgatelink, r. torsion barlink, l. torsion barpin, torsion linkshim a, gate hingeshim b, gate hingeshim c, gate hingeshim d, gate hingetorsion bar, r.torsion bar, l.seal, rubberbolt, hex. (6x22)washer b (6mm)bolt, hex. (6x12)bolt, hex. (6x12)screw, pan (6x16)screw, pan (6x16)nut, hex. (6mm)washer, plain (6mm)washer, plain (6mm)washer, plain (6mm)washer, spring (6mm)washer, spring (6mm)washer, spring (6mm)washer, spring (6mm)
