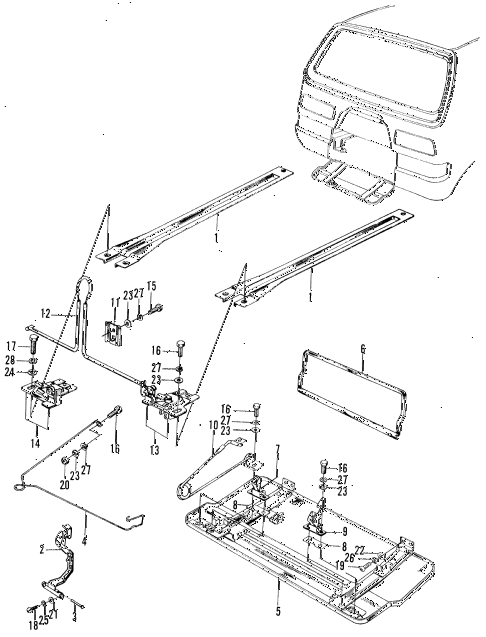

1971 z600 ** 2 DOOR 4MT SPARE TIRE LID diagram
Back to Top
beam, trunk boardbeam, trunk boardlatch, spare tirepin, hingeband, spare tirelid, spare tireseal, tire lidlatch, l. spare tire lidshim, spare tire lidshim, spare tire lidlatch, r. spare tire lidstopper, tire lidplate, fitting wirewire, releaselock, r. (w/bell crank)lock, l. (w/bell crank)bolt, hex. (6x12)bolt, hex. (6x12)bolt, hex. (6x14)bolt, hex. (6x14)bolt, hex. (6x14)bolt, hex. (6x14)bolt, hex. (8x40)screw, pan (4x12)screw, pan (5x12)nut, hex. (6mm)washer, plain (4mm)washer, plain (5mm)washer, plain (6mm)washer, plain (6mm)washer, plain (6mm)washer, plain (6mm)washer, plain (6mm)washer, plain (8mm)washer, spring (4mm)washer, spring (5mm)washer, spring (6mm)washer, spring (6mm)washer, spring (6mm)washer, spring (6mm)washer, spring (6mm)washer, spring (8mm)
