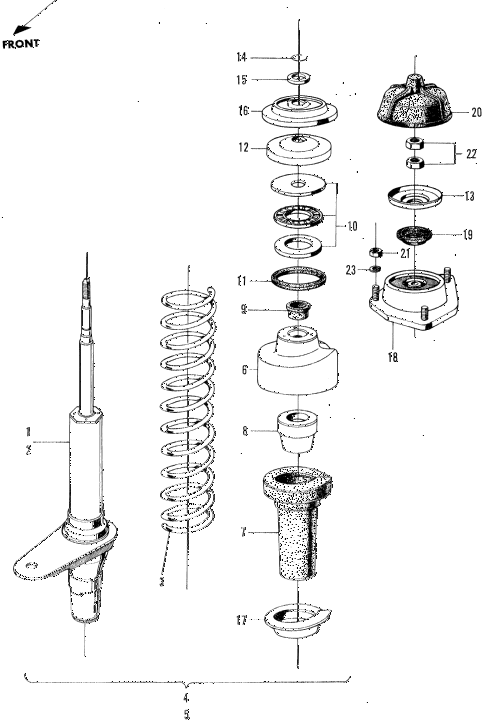

View large diagramHide diagramView diagramView printable catalog
  • 001

    shaft, r. fr. suspension main

    • Part Number: 04525-568-003

    '


    **

    Contact your dealer

  • 002

    shaft, l. fr. suspension main

    • Part Number: 04526-568-003

    '


    **

    Contact your dealer

  • 003

    spring, fr. damper

    • Part Number: 51401-568-030

    '


    **

    Contact your dealer

  • 004

    shock absorber assy., r. fr.

    • Part Number: 51601-568-123

    '


    **

    Contact your dealer

  • 005

    shock absorber assy., l. fr.

    • Part Number: 51602-568-123

    '


    **

    Contact your dealer

  • 006

    seat, damper spring top

    • Part Number: 51684-568-310

    '


    **

    Contact your dealer

  • 007

    cover, dust

    • Part Number: 51687-568-010

    '


    **

    Contact your dealer

  • 008

    bumper, spring

    • Part Number: 51689-538-023

    '


    **

    Contact your dealer

  • 009

    bushing, spring top seat

    • Part Number: 51691-538-023

    '


    **

    Contact your dealer

  • 010

    bearing, thrust

    • Part Number: 51692-538-023

    '


    **

    Contact your dealer

  • 011

    o-ring, dust

    • Part Number: 51693-538-023

    '


    **

    Contact your dealer

  • 012

    plate, thrust

    • Part Number: 51694-568-010

    '


    **

    Contact your dealer

  • 013

    washer, mainshaft top

    • Part Number: 51695-568-020

    '


    **

    Contact your dealer

  • 014

    stopper, ring

    • Part Number: 51697-538-013

    '


    **

    Contact your dealer

  • 015

    washer b

    • Part Number: 51697-568-020

    '


    **

    Contact your dealer

  • 018

    fork, mounting

    • Part Number: 51921-568-050

    '


    **

    Contact your dealer

  • 019

    cover, cushion dust

    • Part Number: 51923-568-010

    '


    **

    Contact your dealer

  • 020

    cap, dust damper top

    • Part Number: 51926-568-671

    '


    **

    Contact your dealer

  • 021

    nut, hex. (8mm)

    • Part Number: 94001-08000-0S

    '


    **

    • $0.60

  • 022

    nut, hex. (14mm)

    • Part Number: 94001-14000-0S

    '


    **

    • $1.07

  • 023

    washer, spring (8mm)

    • Part Number: 94111-08000

    '


    **

    • $0.53

Back to Top
shaft, r. fr. suspension mainshaft, l. fr. suspension mainspring, fr. dampershock absorber assy., r. fr.shock absorber assy., l. fr.seat, damper spring topcover, dustbumper, springbushing, spring top seatbearing, thrusto-ring, dustplate, thrustwasher, mainshaft topstopper, ringwasher bfork, mountingcover, cushion dustcap, dust damper topnut, hex. (8mm)nut, hex. (14mm)washer, spring (8mm)
