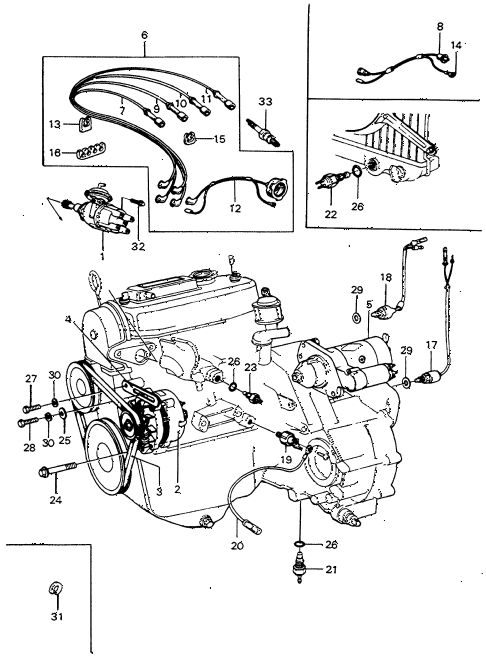

1976 civic **(1200) 3 DOOR 4MT ALTERNATOR - DISTRIBUTOR diagram
Back to Top
distributor assy.alternator assy. (rmd)belt, alternatorbracket, alternatorstarter motor assy.wire assy., ignitionwire, ignition (no.1)wire, ignition (no.2)wire, ignition (no.3)wire, ignition no. 4wire, ignition centerclamp, ignition wireclamp, ignition wireclamp, endswitch assy., back-up lightsensor, transmissionswitch assy., oil pressure (denso)sending unit, water temperature (denso)switch assy., thermostat (a-90) (nippon thermostat)belt, alternatorwasher (21x11x2.3)o-ring (13.5x1.4)o-ring (13.5x1.4)o-ring (13.5x1.4)bolt, hex. (8x22)bolt, hex. (10x25)washer, drain plug (14mm)washer, drain plug (14mm)washer, spring (8mm)washer, spring (8mm)washer, spring (10mm)bolt, flange (6x14)spark plug (bp6es) (ngk)spark plug (w20ep-u) (denso)spark plug (bp7es) (ngk)
