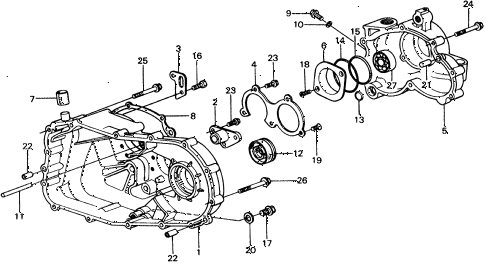

1977 civic ** 5 DOOR HMT HMT TRANSMISSION HOUSING diagram
Back to Top
housing, transmissionholder, reverse idle shaftplate, hangerplate, bearing retainingcover, r. transmission sideguide, l-clutch sealingcap, breatherbolt, sealing (8mm)gasket (8mm)pin, dowel (8x55)oil seal (35x56x9) (nok)o-ring (9.6x2.6) (arai)o-ring (64x2)o-ring (56.1x2)bolt, hex. (8x20)bolt, drain plug (14mm)screw, flat (6x16)washer, drain plug (14mm)pin, dowel (8x14)pin, dowel (14x20)pin, dowel (14x20)bolt, flange (6x18)bolt, flange (6x18)bolt, flange (6x40)bolt, flange (6x45)bolt, flange (8x50)bearing, radial ball (6001)
