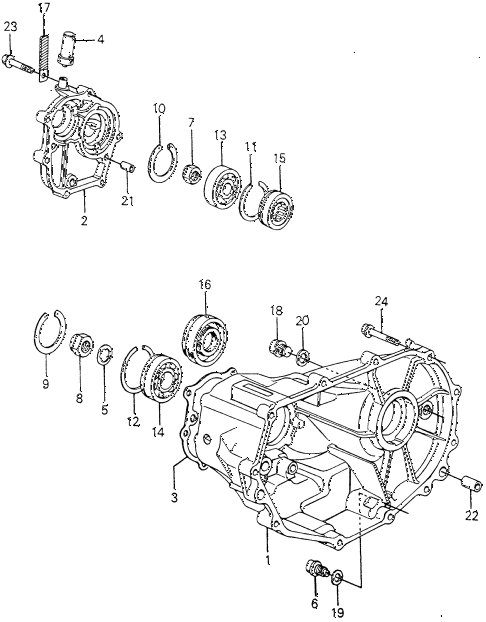

  • 001

    housing, transmission

    • Part Number: 21200-PA0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    cover, transmission

    • Part Number: 21310-PA0-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    cap, breather

    • Part Number: 21397-634-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    washer, spring

    • Part Number: 23926-634-010

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    bolt, plug (14mm)

    • Part Number: 90081-PB6-000

    '


    KA - US - 49 State Spec

    • $12.15

  • 007

    nut, hex. (20mm)

    • Part Number: 90201-634-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    nut, hex. (23mm)

    • Part Number: 90202-671-010

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    ring, snap (65mm)

    • Part Number: 90501-634-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    ring, snap (55mm)

    • Part Number: 90502-634-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    ring, snap (48mm)

    • Part Number: 90602-634-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    ring, snap (62mm)

    • Part Number: 90603-634-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    bearing, ball (6304) (nachi)

    • Part Number: 91003-657-003

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    bearing, ball (6305) (toyo)

    • Part Number: 91004-657-008

    '


    KA - US - 49 State Spec

    • $31.83

  • 015

    bearing, special needle

    • Part Number: 91102-634-961

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    oil seal (35x56x9) (nok)

    • Part Number: 91205-611-005

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 017

    clip (2x60)

    • Part Number: 91410-679-000

    '


    KA - US - 49 State Spec

    • $6.93

  • 018

    bolt, drain plug (20mm)

    • Part Number: 92800-20000

    '


    KA - US - 49 State Spec

    • $3.08

  • 019

    washer, drain plug (14mm)

    • Part Number: 94109-14000

    '


    KA - US - 49 State Spec

    • $0.38

  • 020

    washer, drain plug (20mm)

    • Part Number: 94109-20000

    '


    KA - US - 49 State Spec

    • $0.73

  • 021

    pin, dowel (8x14)

    • Part Number: 94301-08140

    '


    KA - US - 49 State Spec

    • $1.17

  • 022

    pin, dowel (14x20)

    • Part Number: 94301-14200

    '


    KA - US - 49 State Spec

    • $1.37

  • 023

    bolt, flange (6x32)

    • Part Number: 95701-06032-08

    '


    KA - US - 49 State Spec

    • $1.03

  • 024

    bolt, flange (8x40)

    • Part Number: 95701-08040-08

    '


    KA - US - 49 State Spec

    • $1.28
