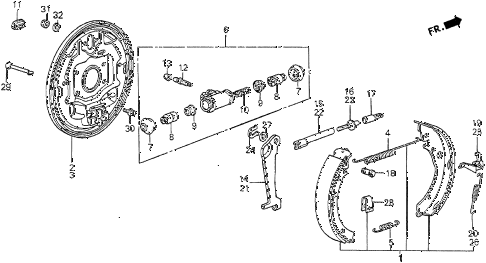

1983 prelude DX 2 DOOR 5MT REAR BRAKE SHOE diagram
Back to Top
plate, r. rr. brake backingplate, l. rr. brake backingspring a, brake shoe returnspring b, brake shoe returncylinder assy., rr. wheelcover, dustcover, dustpiston, wheel cylinderpiston, wheel cylindercup, pistoncup, pistonspring, rr. wheel cylinderplug, adjusterscrew, bleedercap, bleeder screwlever, r. parking brakerod a, r. connectingbolt, r. adjusterrod b, connectingpin, parking brake leverlever, r. adjusterspring, r. adjusterlever, l. parking brakerod a, l. connectingbolt, l. adjusteru-cliplever, l. adjusterspring, l. adjusterwasher, wavespring, shoe clamppin, tensionernut, hex. (6mm)washer, spring (6mm)
