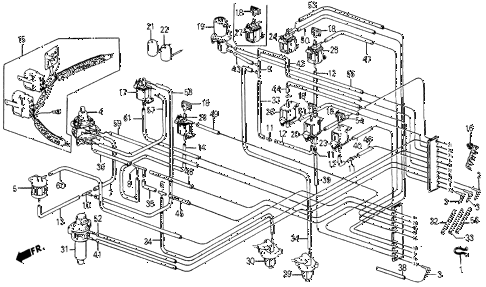

1986 civic 4WD 5 DOOR 5MT NO. 1 CONTROL BOX TUBES diagram
Back to Top
clip, tube (18)joint (3.5) (two-way)joint (3.5) (two-way)joint (3.5) (two-way)valve assy., egr controlfilter assy. (a2)joint (three-way)holder, solenoid (4.5mm)joint, four-way (#60)joint, four-wayjoint (three-way)holder, solenoid (3.5mm)holder, solenoid (3.5mm)holder, solenoid (3.5mm)holder, solenoid (4.5)holder, solenoid (3.5l)clamp, control box tubevalve assy., pv solenoidfilter assy., solenoid valvefilter assy., solenoid valvefilter assy., solenoid valvefilter assy., solenoid valvefilter assy., solenoid valvevalve assy., pb lock solenoidvalve assy., idle up solenoidcoil, auxiliarycoil, auxiliaryvalve assy., power jet controlsolenoidvalve assy., ignition solenoid(#150)valve assy., crank leak solenoidvalve assy., e cut solenoidswitch assy., vacuum (a-250)switch assy., vacuum (b-80)switch assy., vacuum (b-120)switch assy., vacuum (b-80)switch assy., vacuum (b-120)switch, vacuumtube, vacuum (white)tube, vacuum (green)bulk hose, vacuum (3.5x8000)bulk hose, vacuum (3.5x8000)bulk hose, vacuum (4.5x1000)
