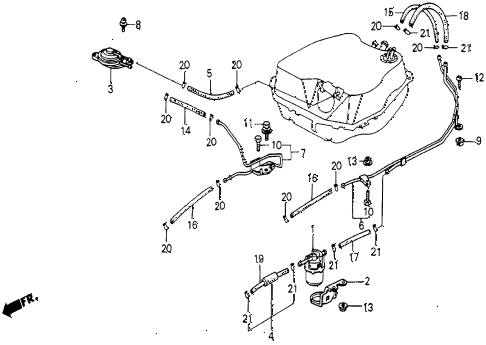

1986 civic 4WD 5 DOOR 5MT FUEL STRAINER - FUEL TUBING diagram
Back to Top
strainer, fuel (toyo roki)bracket, fuel strainervalve (two-way)tube, fuel ventpipe b, fuelpipe b, ventscrew-washer (5x12)grommet, screw (5mm) (black)bolt, hex. (6x12)bolt, hex. (6x12)bolt-washer (6x16)screw, tapping (5x12)nut-washer (6mm)nut-washer (6mm)bulk hose, fuel (4.5x1000)bulk hose, fuel (7.5x8000)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b12)clip, tube (b12)clip, tube (b12)clip, tube (b12)clip, tube (b12)clip, tube (b12)
