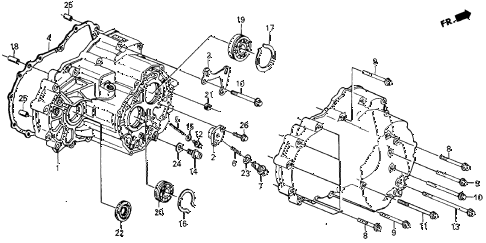

1986 crx DX 2 DOOR 4AT 4AT TRANSMISSION diagram
Back to Top
case set, transmissionhanger, transmissiongasket, torque converter casespring a, idle gear shaftspring b, idle gear shaftbolt, reverse holderbolt, flange (8x53)bolt, flange (8x53)bolt, flange (8x70)bolt, flange (8x70)bolt, flange (8x70)bolt, flange (8x100)bolt, flange (8x100)bolt, flange (8x105)bolt, sealing (8mm)bolt, flange (10x170)bolt, plug (14mm)gasket (8mm)ring, snap (64mm)ring, snap (70mm)pin, dowel (14x25)bearing, ball (26x70x17)bearing, ball (25x64x16) (toyo)oil seal (9x18x7) (arai)oil seal (35x62x9)washer, plain (10mm)washer, drain plug (14mm)pin, dowel (14x20)pin, dowel (14x20)bolt, flange (6x20)
