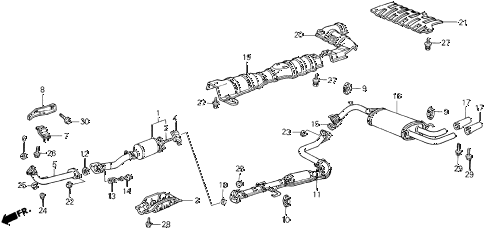

1987 civic SI(1500) 3 DOOR 5MT EXHAUST SYSTEM (SI) diagram
Back to Top
bolt, studcover, rr. (upper)pipe a, ex.gasket, ex. pipe (ishino gasket)stay, ex. pipe abracket, ex. mountingrubber, muffler mounting (70x45x25)rubber, muffler mounting (70x45x25)rubber, ex. pipe mountingpipe b, ex.gasket, ex. flexiblespring, flexible jointbolt a, flexible jointgasket, mufflermuffler, ex.finisher, ex. pipefinisher, ex. pipegasket, pre chamber (52.5mm-53.5mm)plate, floor heat baffleplate, fuel tank baffleplate, muffler bafflenut, self-lock (8mm)nut, self-lock (8mm) (clinch)nut, self-lock (8mm)nut, self-lock (10mm)nut, self-lock (10mm)bolt-washer (8x20)bolt-washer (6x12)bolt-washer (6x12)bolt-washer (6x12)bolt, flange (8x12)bolt, flange (6x16)bolt, flange (6x16)bolt, flange (8x22)
