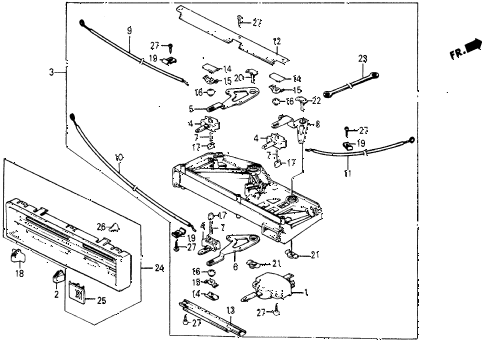

1987 civic DX 5 DOOR 5MT HEATER LEVER diagram
Back to Top
switch assy., heater fanknob, fan switchcontrol assy., heaterlever, control slidelever, control slidelever, control slidelever, temperature controllever, mode controlspring, heater controlspring, heater controlspring, heater controllever, fresh/recirculatingcable, temperature controlcable, mode controlcable, fresh recircularplate a, sliderplate b, sliderslider, leverslider, leverslider, leverspring, sliderspring, sliderspring, slidercollar, slidercollar, slidercollar, sliderpin, clickpin, clickpin, clickknob, heater controlclamp, control cableclamp, control cableclamp, control cableshaft, mode leverstopper, control leverstopper, control levershaft, fresh recircular leverband, heater controlillumination assy., heaterlid, air conditionerbulb, neo-wedge (14v 100ma)screw, tapping (4x10)screw, tapping (4x10)screw, tapping (4x10)screw, tapping (4x10)screw, tapping (4x10)screw, tapping (4x10)
