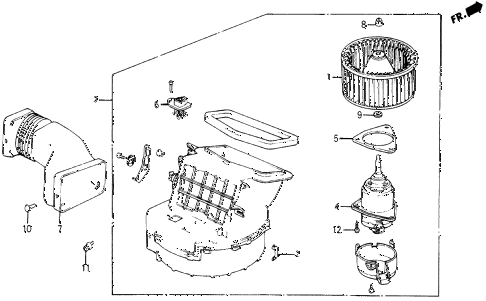

1987 civic DX 5 DOOR 5MT HEATER BLOWER diagram
Back to Top
fan, heaterblower assy.gasketresistor, blower (4p)duct, heaternut, hex. (5mm) (denso)nut, flange (5mm)nut, hex. (5mm) (denso)nut, flange (5mm)washer, specialclip, trim (5mm) *nh167l*bolt-washer (6x16)screw, tapping (5x16)
