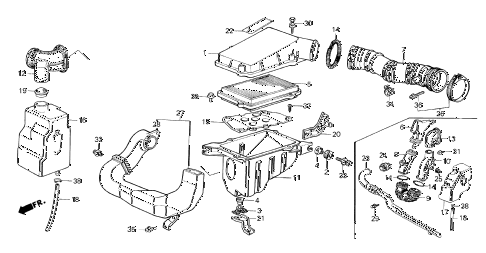

1987 crx SI 2 DOOR 5MT AIR CLEANER (PGM-FI) diagram
Back to Top
cover, air cleanerrubber a, air cleaner housing mountingrubber b, air cleaner housing mountingcollar, air cleaner (toyo roki)collar, air cleaner (toyo roki)hose, air cleanerduct b, air cleanerconnecting tube, air cleaner ductduct c, air cleanercase, cleanertube, air in.spring, air in. tubespring, air in. tubespring, air in. tubeplate, air cleanerchamber, resonatortube, resonator draintube, resonator drainstay, cleaner casestay, cleaner caseplate, cautionseal rubber, side branchseal rubber, resonatorband, air cleaner hosebolt, special (8x28)bolt-washer (5x25)screw, tapping (5x16)bolt-washer (6x22)clamp, fuel tube (d20) (chuo hatsujo)screw, tapping (4x12)clip, tube (c11)clip, tube (c11)bolt, flange (6x16)
