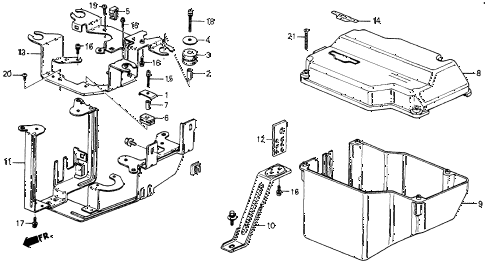

NO. 1 CASE (PGM-FI) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: washer, frequency solenoid valve Part Number: 36017-PG7-004 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: collar, control valve Part Number: 36052-657-300 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.35

Ref #: 003	Honda Part: rubber, mounting Part Number: 36175-PH4-661 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: washer, mounting Part Number: 36055-PE0-004 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: clamp b, wire harness Part Number: 36059-PD1-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: rubber, mounting Part Number: 36195-PG7-005 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: collar, distance Part Number: 36199-PG7-005 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: cover (upper) Part Number: 36201-PE1-671 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: cover (lower) Part Number: 36202-PE1-664 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: stay (lower) Part Number: 36203-PE1-701 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: stay, control box Part Number: 36207-PE7-662 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 012	Honda Part: holder, tube Part Number: 36208-PE7-662 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: base Part Number: 36211-PE7-661 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: label, control box Part Number: 36022-PE7-662 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: screw-washer (5x8) Part Number: 93892-05008-08 Standard Qty.: 005 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.62

Ref #: 017	Honda Part: screw-washer (5x10) Part Number: 93892-05010-18 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.67

Ref #: 018	Honda Part: screw-washer (6x25) Part Number: 93892-06025-08 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.87

Ref #: 019	Honda Part: screw, tapping (5x10) Part Number: 93901-35120 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 020	Honda Part: screw, tapping (4x8) Part Number: 93903-34120 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.48

Ref #: 021	Honda Part: screw, tapping (4x25) Part Number: 93905-34620 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 001	Honda Part: washer, frequency solenoid valve Part Number: 36017-PG7-004 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 002	Honda Part: collar, control valve Part Number: 36052-657-300 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.35

Ref #: 003	Honda Part: rubber, mounting Part Number: 36175-PH4-661 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: washer, mounting Part Number: 36055-PE0-004 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: clamp b, wire harness Part Number: 36059-PD1-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: rubber, mounting Part Number: 36195-PG7-005 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 007	Honda Part: collar, distance Part Number: 36199-PG7-005 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 008	Honda Part: cover (upper) Part Number: 36201-PE1-671 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: cover (lower) Part Number: 36202-PE1-664 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 010	Honda Part: stay (lower) Part Number: 36203-PE1-701 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 011	Honda Part: stay, control box Part Number: 36207-PE7-662 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 012	Honda Part: holder, tube Part Number: 36208-PE7-662 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: base Part Number: 36211-PE7-661 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 014	Honda Part: label, control box Part Number: 36022-PE7-662 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 016	Honda Part: screw-washer (5x8) Part Number: 93892-05008-08 Standard Qty.: 005 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.62

Ref #: 017	Honda Part: screw-washer (5x10) Part Number: 93892-05010-18 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.67

Ref #: 018	Honda Part: screw-washer (6x25) Part Number: 93892-06025-08 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.87

Ref #: 019	Honda Part: screw, tapping (5x10) Part Number: 93901-35120 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 020	Honda Part: screw, tapping (4x8) Part Number: 93903-34120 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.48

Ref #: 021	Honda Part: screw, tapping (4x25) Part Number: 93905-34620 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer
