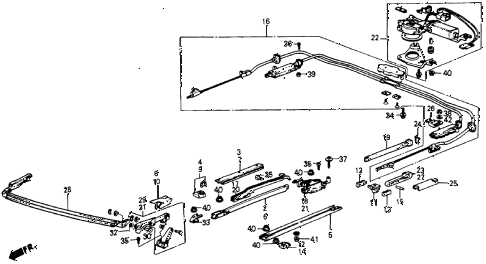

1987 crx SI 2 DOOR 5MT SLIDING ROOF (2) diagram
Back to Top
rail, r. guiderail, r. sub-frame guiderail, r. sub-roof guidestopper, r. roof railrail, l. guiderail, l. sub-frame guiderail, l. sub-roof guidecover, r. hingestopper, l. roof railcover, l. hingepin, slidestopper, r. fr. railslidersliderstopper, l. fr. railpin, slidecable assy.stay, r. rr. slidepipe, cablestay, l. rr. slidemotor assy., rooflink, r. slideclip, cable pipeprotector, rr. side stayswitch assy.link, l. slidedeflector, roofarm, r. deflectorpin, deflector armarm, l. deflectorspring, deflectorshim, stay (1.0mm)shim, stay (2.0mm)shim, stay (1.0mm)shim, stay (2.0mm)bolt-washer (6x16)screw, pan (5x8)screw, pan (5x8)screw, pan (5x8)screw, pan (5x12)screw-washer (5x20)nut, hex. (4mm)nut, hex. (5mm)nut, flange (5mm)nut, flange (5mm)nut, flange (5mm)nut, flange (5mm)nut, flange (5mm)nut, flange (5mm)nut, flange (6mm)washer, plain (4mm)
