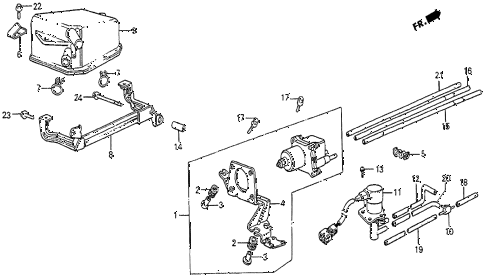

1987 prelude DX 2 DOOR 5MT AIR JET CONTROL (DX) diagram
Back to Top
control assy., air jetrubber, air jet control mountingrubber, air jet control mountingcollar, air jet control mountingcollar, air jet control mountingstay, air jet controlstay, control box tube clamp (no.2)stay, mufflermuffler b, air suctionvalve assy., air leak solenoidtube a, air leak solenoidscrew-washer (5x8)tube a, air jet controltube b, air jet controlbolt-washer (6x28)bolt-washer (6x28)bulk hose, vacuum (4.5x8000)bolt, flange (6x18)bolt, flange (8x14)bolt, flange (10x55)
