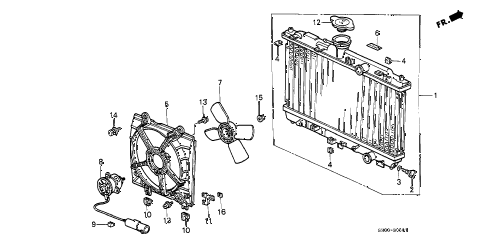

1988 civic DX 3 DOOR 5MT RADIATOR (2) diagram
Back to Top
radiatorbolt, drain (denso)gasket, drain (denso)shroud (denso)mark, fan cover cautionfan, cooling (denso)clip (denso)grommet, shroud mounting (denso)grommet, shroud mounting (denso)stay, connector (denso)cap, radiator (toyo)screw-washer (4x11)screw-washer (4x11)bolt-washer (6x16) (denso)bolt-washer (6x20) (denso)bolt-washer (6x16) (denso)bolt-washer (6x20) (denso)bolt-washer (6x16) (denso)bolt-washer (6x20) (denso)bolt-washer (6x16) (denso)bolt-washer (6x20) (denso)nut, hex. (5mm) (denso)nut, square (denso)
