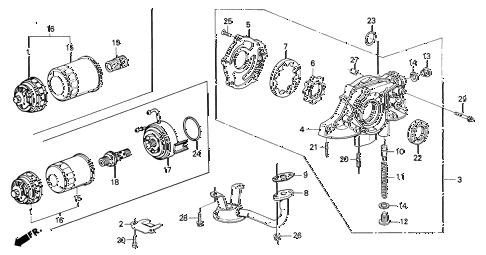

OIL PUMP - STRAINER - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 002	Honda Part: cover, breathing port Part Number: 11311-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.27

Ref #: 003	Honda Part: pump assy., oil Part Number: 15100-P06-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $199.30

Ref #: 004	Honda Part: body, oil pump Part Number: 15110-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: body, oil pump Part Number: 15110-PM3-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: body, oil pump Part Number: 15110-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: body, oil pump Part Number: 15110-PM3-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: cover, oil pump Part Number: 15112-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: rotor, pump (inner) Part Number: 15131-PM3-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $21.48

Ref #: 007	Honda Part: rotor, pump (outer) (sumitomo) Part Number: 15132-PE0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $21.48

Ref #: 008	Honda Part: strainer, oil Part Number: 15220-PM1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: gasket, oil strainer Part Number: 15221-PM3-S00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.47

Ref #: 010	Honda Part: valve, relief Part Number: 15231-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $8.73

Ref #: 011	Honda Part: spring, relief valve Part Number: 15232-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.90

Ref #: 012	Honda Part: bolt, sealing (14mm) Part Number: 15233-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: bolt, sealing (14mm) Part Number: 15301-PE0-300 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $5.12

Ref #: 014	Honda Part: washer, sealing (14mm) Part Number: 15302-PE0-300 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.70

Ref #: 015	Honda Part: filter, oil (toyo roki) Part Number: 15400-PC6-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $7.04

Ref #: 015	Honda Part: filter, oil (toyo roki) Part Number: 15400-PH1-014 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $7.04

Ref #: 015	Honda Part: filter, oil (toyo roki) Part Number: 15400-PC6-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $7.04

Ref #: 015	Honda Part: filter, oil (toyo roki) Part Number: 15400-PH1-014 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $7.04

Ref #: 019	Honda Part: holder, oil filter Part Number: 90015-PH1-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.88

Ref #: 020	Honda Part: bolt, stud (8x28) Part Number: 90020-PE0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.98

Ref #: 021	Honda Part: bolt, stud (6x28) Part Number: 90041-PA5-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.57

Ref #: 022	Honda Part: oil seal (31x46x8) Part Number: 91212-PE0-662 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $12.00

Ref #: 023	Honda Part: o-ring (25x2.4) Part Number: 91307-PE0-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.42

Ref #: 025	Honda Part: screw, flat (6x16) Part Number: 93600-06016-0A Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.60

Ref #: 026	Honda Part: nut, flange (8mm) Part Number: 94050-08080 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.25

Ref #: 027	Honda Part: pin, dowel (8x14) Part Number: 94301-08140 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.17

Ref #: 028	Honda Part: bolt, flange (6x18) Part Number: 95701-06018-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.88

Ref #: 029	Honda Part: bolt, flange (6x35) Part Number: 95701-06035-08 Standard Qty.: 005 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.03

Ref #: 030	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.88

Ref #: 002	Honda Part: cover, breathing port Part Number: 11311-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.27

Ref #: 003	Honda Part: pump assy., oil Part Number: 15100-P06-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$199.30

Ref #: 004	Honda Part: body, oil pump Part Number: 15110-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: body, oil pump Part Number: 15110-PM3-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: body, oil pump Part Number: 15110-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 004	Honda Part: body, oil pump Part Number: 15110-PM3-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 005	Honda Part: cover, oil pump Part Number: 15112-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 006	Honda Part: rotor, pump (inner) Part Number: 15131-PM3-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$21.48

Ref #: 007	Honda Part: rotor, pump (outer) (sumitomo) Part Number: 15132-PE0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$21.48

Ref #: 008	Honda Part: strainer, oil Part Number: 15220-PM1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 009	Honda Part: gasket, oil strainer Part Number: 15221-PM3-S00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.47

Ref #: 010	Honda Part: valve, relief Part Number: 15231-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$8.73

Ref #: 011	Honda Part: spring, relief valve Part Number: 15232-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.90

Ref #: 012	Honda Part: bolt, sealing (14mm) Part Number: 15233-PM3-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Contact your dealer

Ref #: 013	Honda Part: bolt, sealing (14mm) Part Number: 15301-PE0-300 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$5.12

Ref #: 014	Honda Part: washer, sealing (14mm) Part Number: 15302-PE0-300 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.70

Ref #: 015	Honda Part: filter, oil (toyo roki) Part Number: 15400-PC6-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$7.04

Ref #: 015	Honda Part: filter, oil (toyo roki) Part Number: 15400-PH1-014 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$7.04

Ref #: 015	Honda Part: filter, oil (toyo roki) Part Number: 15400-PC6-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$7.04

Ref #: 015	Honda Part: filter, oil (toyo roki) Part Number: 15400-PH1-014 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$7.04

Ref #: 019	Honda Part: holder, oil filter Part Number: 90015-PH1-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.88

Ref #: 020	Honda Part: bolt, stud (8x28) Part Number: 90020-PE0-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.98

Ref #: 021	Honda Part: bolt, stud (6x28) Part Number: 90041-PA5-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.57

Ref #: 022	Honda Part: oil seal (31x46x8) Part Number: 91212-PE0-662 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$12.00

Ref #: 023	Honda Part: o-ring (25x2.4) Part Number: 91307-PE0-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.42

Ref #: 025	Honda Part: screw, flat (6x16) Part Number: 93600-06016-0A Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.60

Ref #: 026	Honda Part: nut, flange (8mm) Part Number: 94050-08080 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.25

Ref #: 027	Honda Part: pin, dowel (8x14) Part Number: 94301-08140 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.17

Ref #: 028	Honda Part: bolt, flange (6x18) Part Number: 95701-06018-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.88

Ref #: 029	Honda Part: bolt, flange (6x35) Part Number: 95701-06035-08 Standard Qty.: 005 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.03

Ref #: 030	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.88
