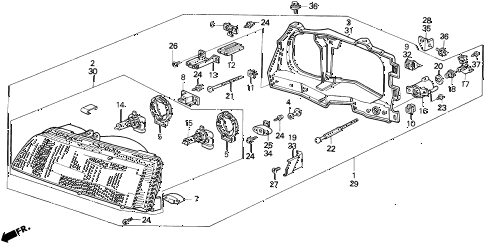

1988 civic **(WAGOVAN) 5 DOOR 4AT HEADLIGHT diagram
Back to Top
housing, r.pivot (1)holder, bulbholder, bulbpivot (2)grommet (5)grommetgrommet, r. (2)grommetgrommetgrommet (6)bracket (3)bulb, headlight (hb3) (12v 60w) (sylvania)bulb, headlight (hb4) (12v 51w) (philips)holder, adjusting (2)nut, specialgear, adjustingscrew, adjustingscrew, special tapping (5x10)screw, special tapping (5x18)screw, special tapping (5x18)screw, special tapping (5x18)screw, special tapping (5x18)screw, special tapping (5x18)grommet, r. (7)screw, special tapping (4x10)housing, l.grommet, l. (2)bolt-washer (6x16) (dacro coating)bolt-washer (6x16) (dacro coating)screw, tapping (4x12)
