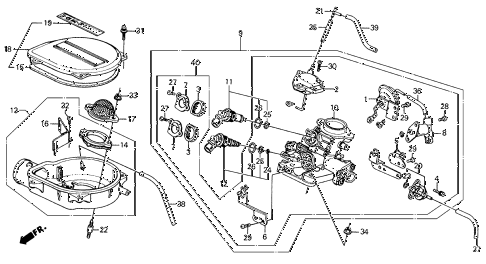

View large diagramHide diagramView diagramView printable catalog
  • 001

    diaphragm assy., tandem

    • Part Number: 16043-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 002

    diaphragm assy., throttle dashpot

    • Part Number: 16044-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 003

    rubber, mounting

    • Part Number: 16077-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 004

    bolt-washer (5x16)

    • Part Number: 16081-PH5-005

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 008

    valve, solenoid tandem control

    • Part Number: 16230-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 011

    injector, main

    • Part Number: 16450-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 012

    injector, auxiliary

    • Part Number: 16460-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $164.95

  • 013

    case assy., air chamber

    • Part Number: 16480-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 014

    insulator, air chamber case

    • Part Number: 16482-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 015

    gasket, air chamber cover

    • Part Number: 16484-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 016

    plate, rectify

    • Part Number: 16485-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 017

    supporter

    • Part Number: 16487-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 018

    cover assy., air chamber

    • Part Number: 16488-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 019

    emblem, air chamber (dual point/pgm-fi)

    • Part Number: 16489-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 020

    regulator assy., pressure

    • Part Number: 16740-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 021

    joint, three way (#45)

    • Part Number: 36010-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 022

    bolt, air chamber stud

    • Part Number: 90034-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 023

    o-ring (9.8x1.9)

    • Part Number: 91301-PM5-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.48

  • 024

    o-ring

    • Part Number: 91303-PM5-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 025

    o-ring

    • Part Number: 91304-PM5-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 026

    o-ring

    • Part Number: 91305-PM5-A02

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 027

    screw, pan (4x10)

    • Part Number: 93500-04010-0H

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.55

  • 028

    screw, pan (5x10)

    • Part Number: 93500-05010-0H

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.55

  • 029

    screw, pan (5x12)

    • Part Number: 93500-05012-0H

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.55

  • 030

    screw, pan (5x25)

    • Part Number: 93500-05025-1H

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 031

    screw-washer (5x16)

    • Part Number: 93893-05016-07

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.80

  • 032

    screw, tapping (4x10)

    • Part Number: 93901-44220

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.55

  • 033

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.23

  • 034

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.25

  • 035

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $52.80

  • 036

    bulk hose, vacuum (3.5x1000)

    • Part Number: 95005-35001-20M

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.20

  • 037

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    • $52.80

  • 039

    tube, special (4.5x115)

    • Part Number: 17417-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 039

    bulk hose, vacuum (4.5x1000)

    • Part Number: 95005-45001-10M

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $11.48

  • 039

    tube, special (4.5x115)

    • Part Number: 17417-PM5-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 039

    bulk hose, vacuum (4.5x1000)

    • Part Number: 95005-45001-10M

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $11.48
