FRONT SEAT COMPONENTS
View large diagramHide diagramView diagramView printable catalogTranslate

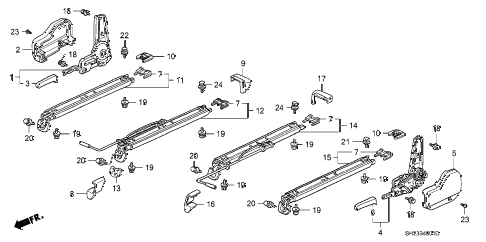

1988 crx DX 2 DOOR 4AT FRONT SEAT COMPONENTS diagram

  • 001

    adjuster, r. reclining *nh1l*

    Part Number: 81230-SH2-A02ZA
    (BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 003

    knob b, r. reclining *nh1l*

    Part Number: 77254-SB2-004ZA
    (BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 004

    adjuster, l. reclining *nh1l*

    Part Number: 81630-SH2-A02ZA
    (BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 006

    knob b, l. reclining *nh1l*

    Part Number: 77454-SB2-004ZA
    (BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 007

    cap, slide rail end

    Part Number: 77512-SB2-014

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 011

    adjuster, slide (outer)

    Part Number: 81260-SH2-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 012

    adjuster, r. slide (inner)

    Part Number: 81270-SH2-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 013

    stopper, slide

    Part Number: 81273-SH2-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 014

    adjuster, l. slide (inner)

    Part Number: 81280-SH2-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 015

    adjuster, slide (outer)

    Part Number: 81260-SH2-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 018

    bolt-washer (10x16)

    Part Number: 90693-SB2-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 019

    bolt-washer (8x16)

    Part Number: 93402-08016-07

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 021

    bolt-washer (8x25)

    Part Number: 93417-08025-07

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

  • 023

    screw, tapping (5x8)

    Part Number: 93901-25080

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.58

  • 024

    bolt-washer (8x25)

    Part Number: 93417-08025-07

    ''


    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec
    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer
