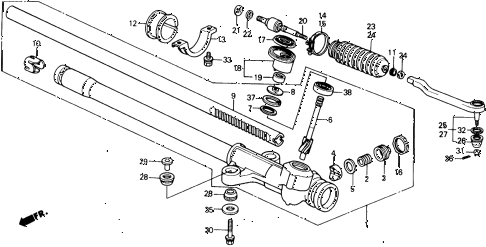

1988 crx HF 2 DOOR 5MT STEERING GEAR BOX - TIE ROD diagram
Back to Top
box, steering gearspring, rack guide pressurescrew, rack guideguide, steering rackwasher, diskpinion, steering (lh)dust seal, steering pinion (arai)rack, steeringbush, rack endclip, tie rodcushion b, steering rackbracket, steering rackband b, bellowsband, bellowsnut, lockgrommet a, steeringspacer, steering grommetend, rackwasher, tie rod stopperwasher, tie rod lockdust seal b, tie roddust seal a, tie rodboot, tie rod end (technical auto parts)bush, steering gear box mountingbush, steering gear box mountingcollar, steering gear box mountingbolt, gear box mounting (10x55)nut, castle (10mm)circlip, tie rodbolt-washer (10x20)nut, hex. (14mm)washer, plain (10mm)pin, split (2.0x22)pin, split (2.0x35)pin, split (2.0x22)pin, split (2.0x35)pin, split (2.0x22)pin, split (2.0x35)circlip (inner) (35mm)bearing, radial ball (6202)
