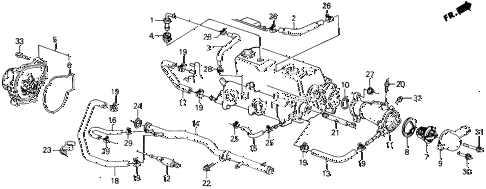

1988 prelude 2.0S 2 DOOR 5MT WATER PUMP (S) diagram
Back to Top
valve assy., pcvtube, breather (a)tube, breather (b)grommet, pcv valvewater pump setgasket, water pumpthermostat unit (82) (nippon thermostat)thermostat unit (82) (fuji seiko)thermostat unit (82) (nippon thermostat)thermostat unit (82) (fuji seiko)rubber, thermostat mountinggasket, thermostat casecase, thermostatvalve, thermohose, bypass inletpipe, connectinghose, carburetor in.hose, carburetor outlethose a, bypass outlethose, bypass outlet (b)clip, hose (18.7mm)clip, hose (18.7mm)clip, hose (18.7mm)clip, hose (18.7mm)clip, hose (18.7mm)clip, hose (18.7mm)bolt, breathing waterjoint, tubebolt, flange (8x16)clip, tubeo-ring (31.2x4.1) (nok)clamp, tube (d12)clamp, tube (d12)clamp, tube (d17)clamp, tube (d17)nut, flange (8mm)clamp, tube (d12)clamp, tube (d12)clamp, tube (d12.5)clamp, tube (d12.5)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x45)bolt, flange (6x10)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)
