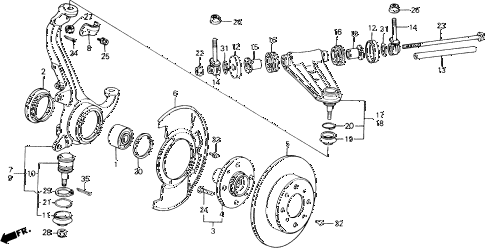

1989 accord DX 2 DOOR 5MT FRONT KNUCKLE - BRAKE DISK diagram
Back to Top
bearing assy., fr. hub (nsk)bearing assy., fr. hub (ntn)bearing assy., fr. hub (nsk)bearing assy., fr. hub (ntn)ring, fr. knucklehub, fr.disk, fr. brakeprotector, knucklejoint, ball (lower) (musashi)boot, ball dust (lower) (musashi)seal, housingseal, housingcollar, arm (upper)bolt, arm anchor (upper)bolt, arm anchor (upper)bush, arm (upper)bush, arm (upper)seal, arm bush (upper)seal, arm bush (upper)joint, r. fr. ball (upper)joint, l. fr. ball (upper)boot, tie rod end (technical auto parts)circlip (musashi)circlip (chuo hatsujo)nut, self-lock (10mm)bolt, fr. arm (upper) (saga)bolt, wheel (rocknel fastener)bolt-washer (6x12)nut, self-lock (12mm) (clinch)(sato rashi)nut, self-lock (12mm) (clinch)(sato rashi)nut, ball pin (upper) (10mm)nut, castle (12mm)circlip (outer) (40mm)circlip (inner) (76mm)o-ring (18x2.4)o-ring (18x2.4)screw, flat (6x14)screw-washer (5x12)pin, split (2.0x35)pin, split (3.0x22)
