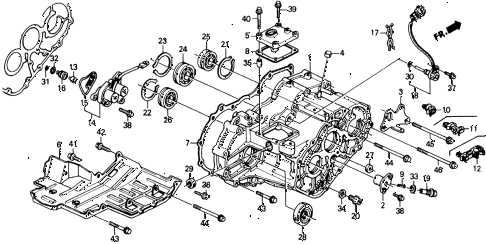

1989 civic 4WD(1600) 5 DOOR 4AT AT TRANSMISSION HOUSING diagram
Back to Top
case, transmissioncase, transmissioncase, transmissioncase, transmissionholder, reverse idle shafthanger, transmissioncap, breathercover, changeguard, transmission (lower)gasket, torque converter casespring b, idle gear shaftclamp, throttle cablebolt, reverse holderbolt, plug (14mm)ring, snap (62mm)ring, snap (64mm)ring, snap (70mm)bearing (26x70x17)bearing, ball (24x62x15)bearing (26x64x16)oil seal (9x18x7) (arai)oil seal (40x76x9) (nok)oil seal (12x22x7) (arai)o-ring (12.8x1.9) (nok)washer, plain (10mm)washer, drain plug (14mm)pin, dowel (8x14)bolt, flange (6x16)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (6x25)bolt, flange (6x35)bolt, flange (8x16)bolt, flange (10x55)bolt, flange (10x55)bolt, flange (10x110)bolt, flange (10x110)bolt, flange (10x120)
