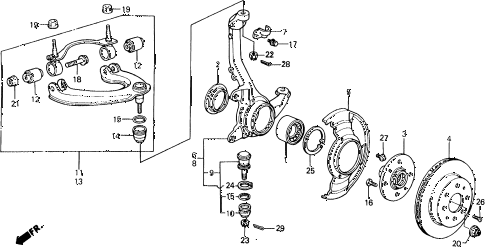

1989 civic 4WD(1600) 5 DOOR 5MT STEERING KNUCKLE - FRONT BRAKE DISK diagram
Back to Top
bearing assy., fr. hub (koyo seiko)ring, fr. knucklehub, fr.disk, fr. brakesplash guard, fr. brakeprotector, knucklejoint, ball (lower) (musashi)boot, ball dust (lower) (musashi)bush, fr. arm (upper)bush, fr. arm (upper)boot, ball joint (upper)circlip, control armcirclip, control armbolt, wheel (rocknel fastener)bolt-washer (6x12)bolt, arm (upper)nut, self-lock (12mm) (clinch)(sato rashi)nut, self-lock (12mm) (clinch)(sato rashi)nut, spindle (22mm)nut, self-lock (10mm)nut, ball pin (upper) (10mm)nut, castle (12mm)circlip (outer) (40mm)circlip (inner) (72mm)screw, flat (6x14)screw-washer (5x12)pin, split (2.0x22)pin, split (2.0x35)pin, split (2.0x22)pin, split (2.0x35)pin, split (3.0x25)pin, split (3.0x45)pin, split (3.0x25)pin, split (3.0x45)
