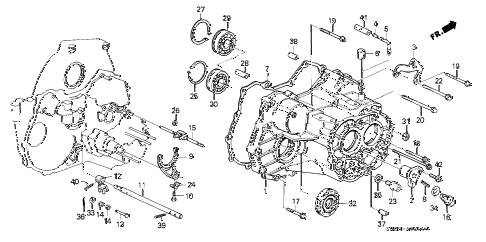

1989 crx DX 2 DOOR 4AT AT TRANSMISSION HOUSING diagram
Back to Top
case, transmissionholder, reverse idle shafthanger, transmissiongasket, torque converter casespring b, idle gear shaftfork, reverse shiftbolt, shaft fork settingshaft, controllever, manual valvepin, manual valveroller, manual valveroller, manual valveshaft, throttle valvebolt, reverse holderbolt, flange (8x53)bolt, flange (8x70)bolt, flange (8x90)bolt, flange (8x90)bolt, flange (8x125)bolt, flange (8x176)bolt, flange (8x125)bolt, flange (8x176)bolt, flange (8x115)bolt, plug (14mm)washer, lock (6mm)ring, snap (64mm)circlip (7mm)ring, snap (70mm)pin, dowel (14x25)bearing (26x70x17)bearing (26x64x16)oil seal (9x18x7) (arai)oil seal (35x76x9) (nok)washer, plain (5mm)washer, plain (10mm)washer, drain plug (14mm)pin, split (1.6x12)pin, dowel (8x14)pin, dowel (14x20)pin, spring (4x16)pin, spring (5x18)bolt, flange (6x20)
