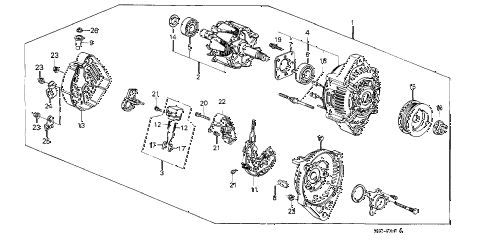

1989 crx DX 2 DOOR 4AT ALTERNATOR (DENSO) diagram
Back to Top
alternator assy. (cha57) (denso)rotor assy.holder assy., brushframe assy., drive endbearing, rr. generatorbearing, rr. generatorbearing, rr. generatorbearing, rr. generatorbearing, fr. generatorplate, retainerbush, insulationbush, insulationframe, rr. endrectifier assy.spring, brushspring, brushcover, rr. endcover, bearingpulleynut, pulley lockbrushbrushbolt, stud (6x68)screw-washerscrew-washer (4x25)screw-washer (4x8)screw-washer (4x8)screw-washer (4x8)nut-washer (5mm)nut-washer (5mm)nut-washer (5mm)nut-washer (5mm)clip, cordnut, hex. (6mm)
