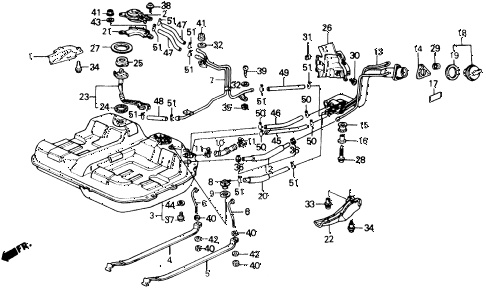

1989 prelude 2.0SI(4WS) 2 DOOR 5MT FUEL TANK diagram
Back to Top
cover, fuel tankvalve (two-way)band, r. fuel tank mountingband, l. fuel tank mountingbolt, fuel tank mountingbolt, fuel tank mountingpetcock, fuel cutgasket, fuel cut valveclip, filler tubeclip, filler tubegasket, fuel fillerlabel, fuel filler caution (unleaded fuel only)cap, fuel fillergasket, fuel filler captube assy., ventbracket, valve (two-way)gasket, baseretainer, fuel unitcover, fuel pipecap, floor holebolt, special (6x26)bolt, special (6mm)bolt, special (6x26)bolt, special (6mm)nut, flange (5mm)screw, tapping (5x20)grommet, screw (5mm)washer, plain (5mm)washer, plain (5mm)bolt, fr. fenderbolt, fr. fendergrommet, screw (5mm) (black)clip, air bleed tubeclip, air bleed tubebolt, drain plug (12mm)screw-washer (5x12)screw, tapping (5x12)nut, hex. (8mm)nut, hex. (8mm)nut, hex. (8mm)nut, hex. (8mm)nut, flange (5mm)nut, flange (5mm)washer, plain (8mm)washer, plain (8mm)washer, plain (5mm)washer, drain plug (12mm)bulk hose, fuel (4.5x1000)bulk hose, fuel (5.5x8000)bulk hose, fuel (5.5x8000)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b8)clip, tube (b10)clip, tube (b10)clip, tube (b10)clip, tube (b10)clip, tube (b10)clip, tube (b10)
