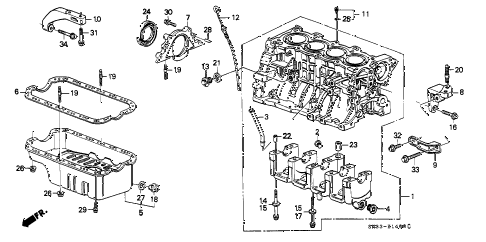

1990 civic DX 3 DOOR 4AT CYLINDER BLOCK - OIL PAN diagram
Back to Top
gasket, oil pan (otsuka)cover, r. sidebracket, engine mountingorifice assy., oil passagedipstick, oil (otsuka)bolt, drain plug (28mm)bolt-washer (10x112)bolt-washer (10x112)bolt, mounting bracket (10x32.5)bolt, drain plug (14mm)bolt, stud (6x28)bolt, stud (6x28)bolt, stud (6x28)bolt, stud (12x44)washer, drain plug (28mm)pin, dowel (12x18)pin, dowel (18x22)oil seal (80x100x10) (nok)o-ring (7x1.7)nut, flange (6mm)washer, drain plug (14mm)pin, dowel (5x8)pin, dowel (5x8)bolt, flange (6x18)bolt, flange (6x25)
